Toolspace

Toolspace is a PalletSet, which can be docked on the AutoCAD screen, just like Properties or Toolspace from Civil 3D

The following tabs are available in the Toolspace:

• Prospector - Contains the objects that make up the project: devices, networks, catchments, tables, reports and projections
• Settings - Contains settings that control how objects are drawn or calculated
• Properties - Shows the properties of the selected object(s) on screen. It works like AutoCAD's Properties command, however it only applies to this program's objects
• Design - Shows the network currently in the process of being calculated. When a network is being calculated, its name will be present in the name of this tab
• Excavation - Displays information relevant to the excavation of the selected device if it provides that type of information
• Hydraulic Sections - shows calculations of hydraulic sections of longitudinal gravity devices

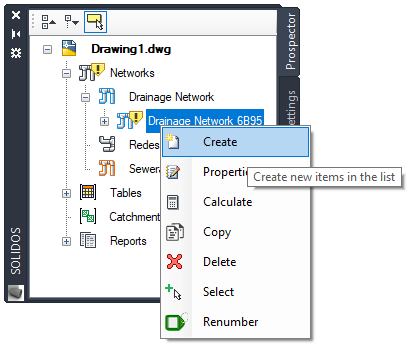

Note, the nodes that appear on the Toolspace tab and the Settings tab can have one or more commands associated with them. To access them, right-click on the icon:

Editing, creation, numbering commands, among others, are available.
