Hydraulic Sections Tab

Lists the hydraulic properties of device longitudinal, both for dimensioning and verification device

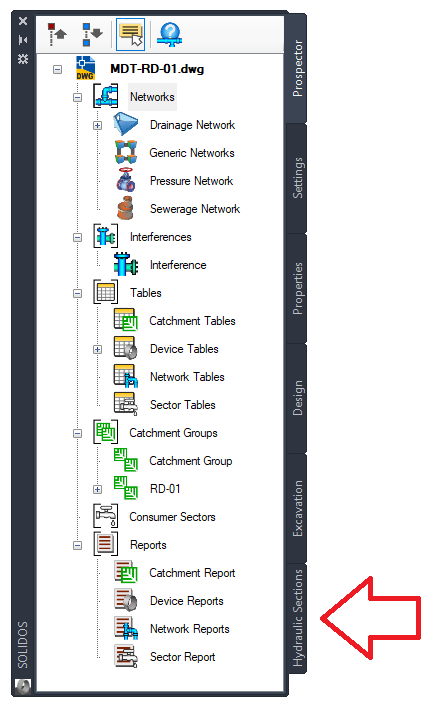

To use, make sure the Toolspace is visible and select an object in plan that belongs to this program, for example: device, table or label

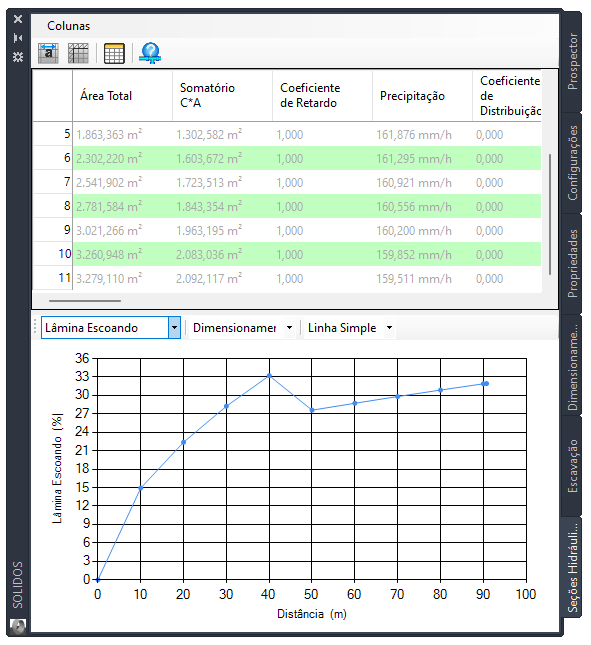

By selecting a longitudinal device, when the Drainage Network is properly calculated, it will be possible to verify the calculations:

To learn more, see the topic Operation / Designing / Hydraulic Designing / Longitudinal Devices
