EPANETPLOT

The EPANETPLOT command creates time series plots from EPANET.

To create an EPANET Time Chart, follow these instructions:

1. Have Pressure Networks
   If no network exists, it will not be possible to calculate with the EPANET engine and therefore, no graphics can be drawn
2. On all networks listed above, ensure that all devices have the Epanet indicating a type of node / link. This association between SOLIDOS devices and EPANET is carried out within the device's Constructor

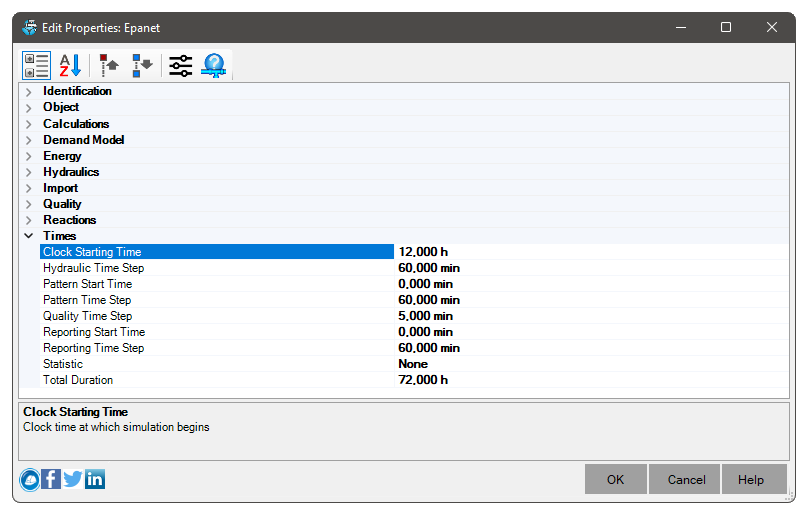

Start and end intervals of the simulation should ensure that multiple date/times are simulated so that there are values to show
3. Run the command EPANETCALC, if you haven't already run it
   Note: that using the command EPANETCALC assumes that checks necessary have been made. See the help for this command for more information.
4. Call the EPANETPLOT command and fill in the beginning and ending intervals of the graph.
   Note: that the initial values match those of the simulation, when creating a new graph:


5. Add items to the series table:


6. Choose the object type, then choose the variable to be listed and the measurement unit
7. Double-click on the cell of the Object column, to select in the Model Space the device when necessary
8. Note that the green dot may turn red if all data is not provided
9. Click the Plot button, next to the OK button and see the result:
