Tables

Table is a type of Report, which is inserted in the project's model space.

An Table can expose data from:

• Devices
• Catchments
• Consumer Sectors
• Networks

It will be useful to generate service notes by sheet, section, or general, as it allows various types of device selections.

To create a table, use the command STABLE. To export to external file, use SEXPORTABLE

After having created the table, by clicking the right mouse button on the corresponding node in the Toolspace, you can:

• Properties - edit table properties
• Delete - deletes the selected table
• Zoom - zooms in plan, at the insertion point of the table
• Calculate - forces table update
• Select - selects the items that make up the report
• Export - exports the report to HTML or XLS

A table has the following properties:

• Identification
  • Name - identifies the table in the Prospector tab
    Avoid names that are too long, or that contain the following characters: '*', '>', '<', '/', '\', '"', ':', ';', '|', '=', '`', '#', ',', '?'
  • Description - informational text that appears when hovering over the table node in the Prospector
• Object
  • Style - style or column template used to generate the table
  • Layer - layer on which the table is drawn
  • Is Calculated - Indicates whether the table is up to date or not ( appears if it isn't)
  • Auto Calculate - indicates whether the table is automatically updated when changing the objects that appear in the table
    Note, if there are many tables, this operation can be slow, leave it to update manually later
  • Table Style - AutoCAD table style
    Controls font, cell size and borders
• Location
  • Insertion point - Insertion point of the top left corner of the table
• Geometry

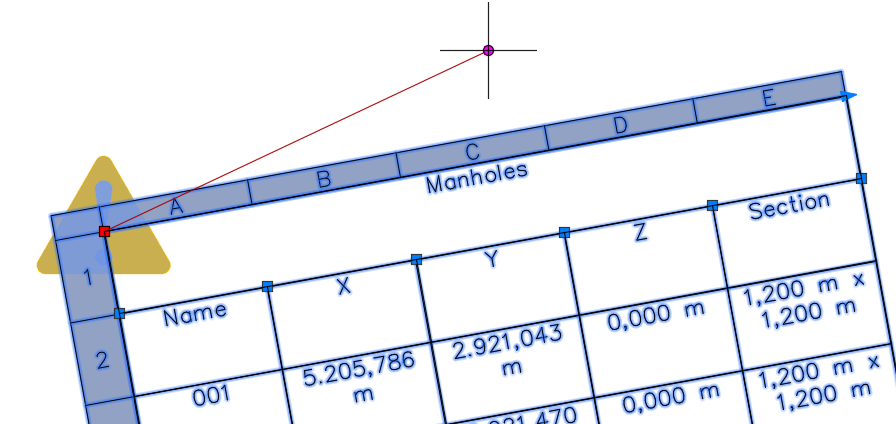

  • Rotation - rotation of the table relative to the WCS X axis, can be changed by dragging the Rotation GripPoint:


• Table
  • Objects - list of selected items
    Depending on the type of selection, you can select manually and the button to select () is enabled in this field
  • Selection Polygon - list of points (WCS) of the selection polygon
    Only available if the selection type is Window or Crossing
  • Selection type - type of selection of table items, it can be:
    • All - selects all project items (devices or catchments)
      Note that items will still be filtered by rows of data from the table style
    • Window - selects items that are fully contained by the selection polygon
    • Intersecting - selects items that are wholly or partially contained (intersects with the polygon) by the selection polygon
    • Selection - manual selection of items, enable button ( ) in the Selected Items
    field
    • Network - selects only devices from the chosen network in the Network
    field
  • Network - Enter the name of the network chosen to generate the table, if the selection type is Network
  • File - name of the file to be generated externally when you want to export the table to HTML or XLS
• HTML
  • HTML Template - name of the template file that generates the final HTML file
    In it, insert your company logo, for example
• Excel
  • Excel Template - name of the Microsoft Excel file that has the template sheet to be used when generating an external EXCEL report
  • Excel Worksheet - name of the worksheet inside the template file that will contain the results
  • Line Number - number of the line where the data will start to be inserted
  • Column Number - column number where the data will start to be inserted

Note that the table drawn in AutoCAD is an AutoCAD table, therefore, table editing commands will be available. However, any edition of table cell contents will be undone. Only reDesigning of rows and columns, or changing the Table Style is allowed.

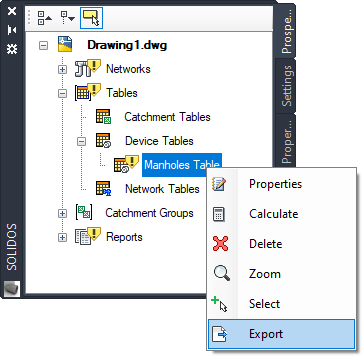

Still in the table node, in Prospector, it is possible to export the table to an external file:

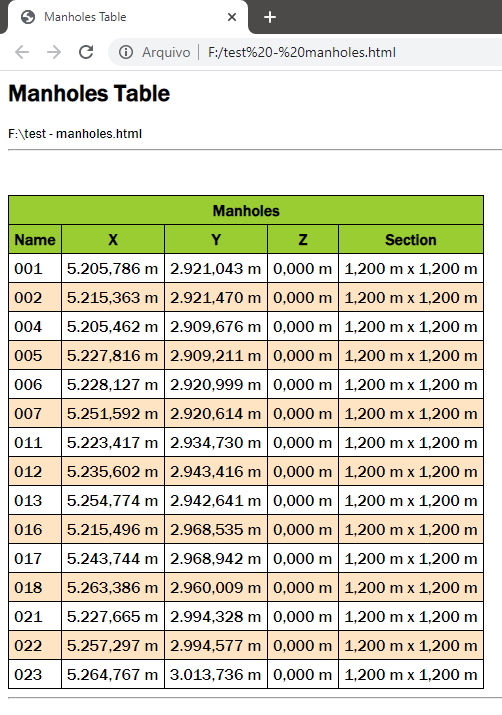

A result like this will be displayed:

Note that the appearance of the HTML will depend on the HTML template used

The commands for editing tables are:

• STABLE - for creating tables
• SPROPS - to edit the properties of the label
• STABLESTYLES - to edit table styles
• SEDITSTYLE - to edit table style
• SEXPORTTABLE - to export the table
