Reports

Report is a table that can export data from:

• Devices
• Catchments
• Consumer Sectors
• Networks

These reports are exclusively for export, allowing export to HTML files or even to Microsoft Excel.

To create a report, use the command SREPORT.

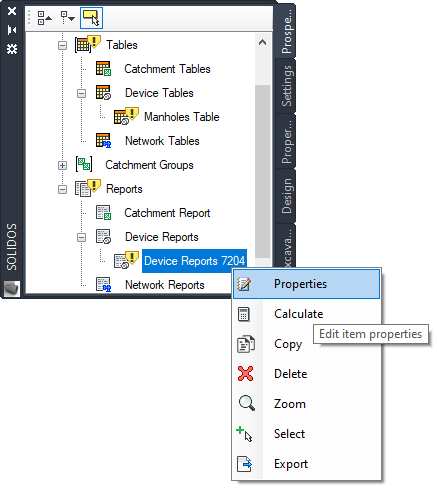

To access these reports, access the Prospector / Reports node. In it several actions can be performed by clicking on the node:

From the menu you can:

• Properties - edit item properties
• Copy - clones the selected item
• Delete - deletes the selected item
• Zoom - zooms in plan on the items that make up the report
• Select - selects the items that make up the report
• Export - exports the report to HTML or XLS

A report has the following properties:

• Identification
  • Description (Name, String) - identifies the table in the Prospector tab
    Avoid names that are too long, or that contain the following characters: '*', '>', '<', '/', '\', '"', ':', ';', '|', '=', '`', '#', ',', '?'
  • Description (Description, String) - informational text that appears when hovering over the table node in the Prospector
• Object
  • Style - style or column template used to generate the table
  • Is Calculated (IsCalc, Boolean) - Indicates if the report needs to be exported again
  • Auto Calculate (AutoCalc, Boolean) - monitors for edits that would change the report and if this happens, flags it with the icon ()
  • Table Style (TableStyle, ObjectId) - AutoCAD table style
    Controls font, cell size and borders
• Table
  • Objects (Objects, ListObjectId) - list of selected items
    Depending on the type of selection, you can select manually and the button to select () is enabled in this field
  • Selection Polygon (SelectionPolygon, GeometryPointList) - list of points (WCS) of the selection polygon
    Only available if the selection type is Window or Crossing
  • Selection Type (SelMode, Enum) - type of selection of table items, it can be:
    • All - selects all project items (devices or catchments)
      Note that items will still be filtered by rows of data from the table style
    • Window - selects items that are fully contained by the selection polygon
    • Intersecting - selects items that are wholly or partially contained (intersects with the polygon) by the selection polygon
    • Selection - manual selection of items, enable button ( ) in the Selected Items
    field
    • Network - selects only devices from the chosen network in the Network
    field
  • Network (SolNetwork, ObjectId) - Enter the name of the network chosen to generate the table, if the selection type is Network
  • Start Device (StartDevice, ObjectId) - Name of the starting device for the work order, if the selection type is Work Order
  • End Device (EndDevice, ObjectId) - Name of the ending device for the work order, if the selection type is Work Order
  • File (File, String) - name of the file to be generated externally when you want to export the table to HTML or XLS
• HTML
  • HTML Template (TemplateHtml, String) - name of the template file that generates the final HTML file
    In it, insert your company logo, for example
• Excel
  • Excel Template (ExcelTemplate, String) - name of the Microsoft Excel file that has the template sheet to be used when generating an external EXCEL report
  • Excel Worksheet (ExcelSheet, String) - name of the worksheet inside the template file that will contain the results
  • Line Number (ExcelLine, Integer) - number of the line where the data will start to be inserted
  • Column Number (ExcelColumn, Integer) - column number where the data will start to be inserted

The report node can show the icon (). This occurs when the report is out of date. Use the node's context menu to force refresh all reports. Note: as the report is not drawn in AutoCAD as a table, it is considered the report will be out of date until you export it to an external file.

The commands for editing reports are:

• SREPORT - to create reports
• STABLESTYLES - to edit report styles

Watch the video of creating a report on YouTube: Box Service Note
