SWMM - Regras de Controle - Cláusulas de Ação

An action clause of a control rule can have one of the following formats:

PUMP  id STATUS = ON/OFF
CONDUIT id  STATUS = OPEN/CLOSED
PUMP/ORIFICE/WEIR/OUTLET id  SETTING = value

Where:

• id - the object ID label
• SETTING depends on the object being controlled:
  • Pumps: is a multiplier applied to the flow calculated from the curve pump speed (or relative pump speed for a TYPE5 pump)
  • Orifices: is the fractional amount that the orifice is fully open ( orifice control is accomplished by lowering or raising a horizontal gate from the top of the orifice)
  • Spills: is the fractional amount of the original freeboard that exists ( i.e. control of the spillway is performed by moving the crest height up or down)
  • Outputs: is a multiplier applied to the flow rate calculated from the curve nominal output.

Some examples of action clauses are:

PUMP P67 STATUS = OFF
ORIFICE O212 SETTING = 0.5

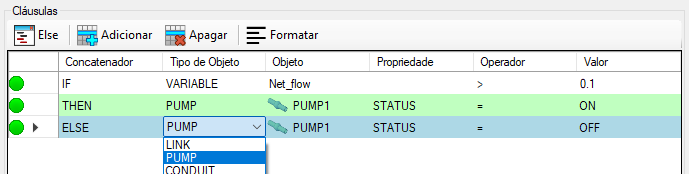

In SOLIDOS, the actions are edited in the frame (command SWMMCONTROLS b>):

See also: SWMM Rules Controls
