Catchments Group

The node Catchment Group concentrates Catchments, grouping them, for example, by network a>

This node still contains the default styles to apply to nets inserted in this group:

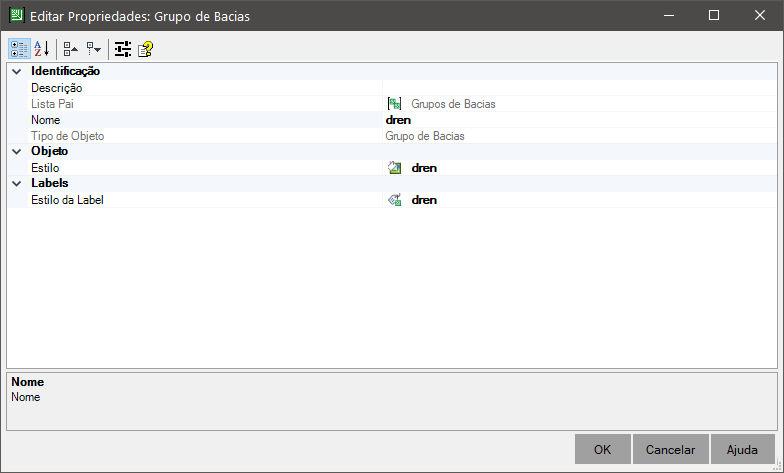

On the model space, click the default style properties to:

• Object
  • Style - name of the default style to be applied to catchments added in this group
• Labels
  • Label style - name of the default label style to be added to catchments
    If a style is chosen, every Catchment created will already have an associated label. Otherwise, use the command SADDLABELS, to add labels

In the context menu of this node you can:

• Properties - edit the catchment group properties
• Delete - Deletes the catchment group and the catchments contained in it
• Zoom - Centers the zoom in the AutoCAD window to show the catchments of this group
• Select - selects the catchments of this group
• Number - Renames catchments
