SSECTOR

The command SSECTOR creates a consumer sector.

To use, call SSECTOR from the command line, menu, toolbar or Ribbon, then follow these steps:

1. Select a polyline, if you have already drawn it, otherwise inform the coordinates of the vertices, clicking them on the screen. If no vertex is clicked and no polyline entered, it will not be possible to continue

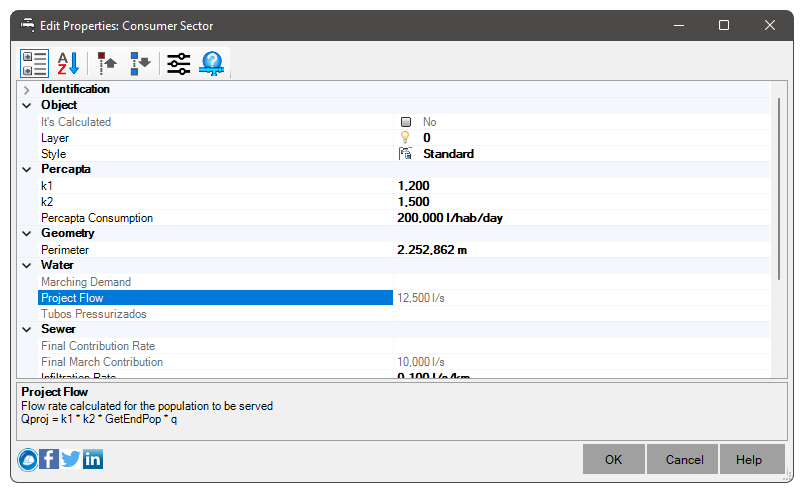

2. A screen will open with the properties of the consumption sector, such as percapta consumption, population, k1, etc. Edit them and click OK:


3. After that, the Catchment will be shown on the screen

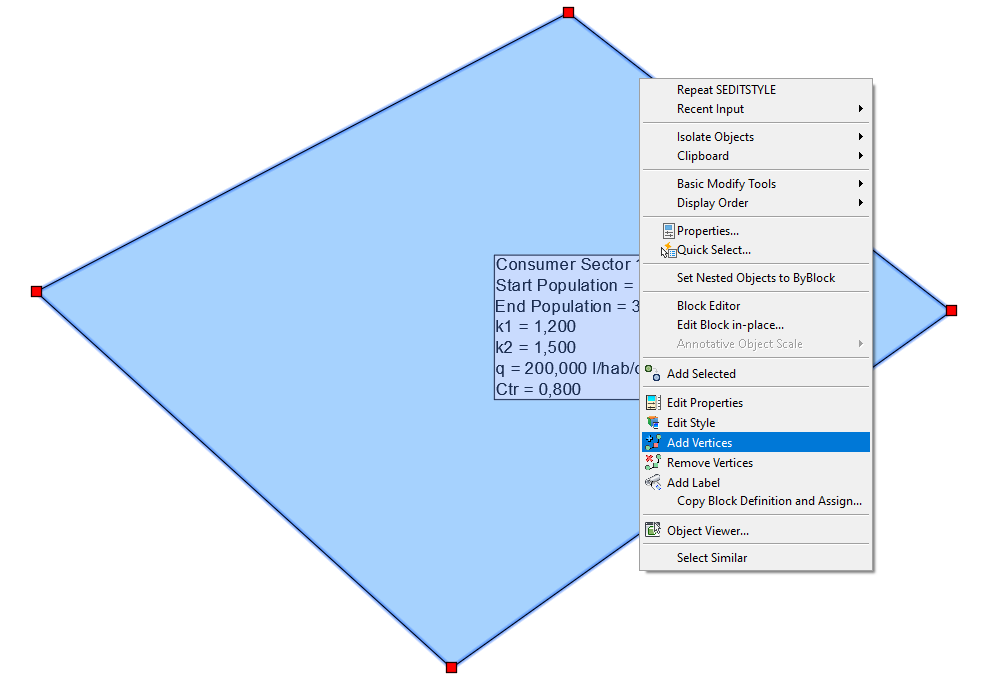

After creating the sector, it is possible to edit its properties, add/remove vertices in the area. Try selecting the sector and clicking the right mouse button:

The following commands are available to edit the Catchment:

1. SADDVERTEX to add vertices to the consumer sector
2. SDELVERTEX to remove vertices from the consumption sector
3. SEDITSTYLE to edit the style
4. SADDLABELS to add label
5. SPROPS to edit properties like population, k1, k2 etc

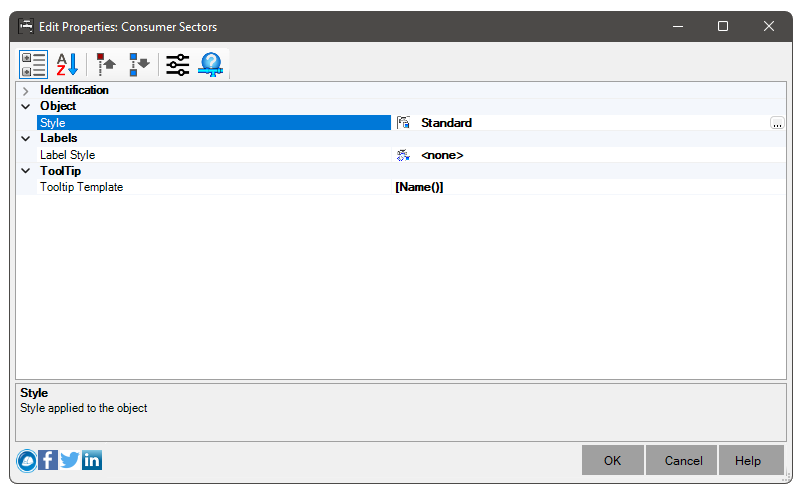

Note: for the consumer sector to have a label, use the command SADDLABELS. Or, configure the Consumer Sectors node to have a default label style by clicking its properties in the Toolspace:

Note: To be able to apply changes to this command, a license is required. Otherwise, you will not be able to create catchments.
