Solids Builder - Flat (Origin/Normal)

Solids Builder - Plane (Origin/Normal)

Plane (Origin/Normal) - creates a reference plane that passes through the informed point and has a normal vector equal to the informed vector:

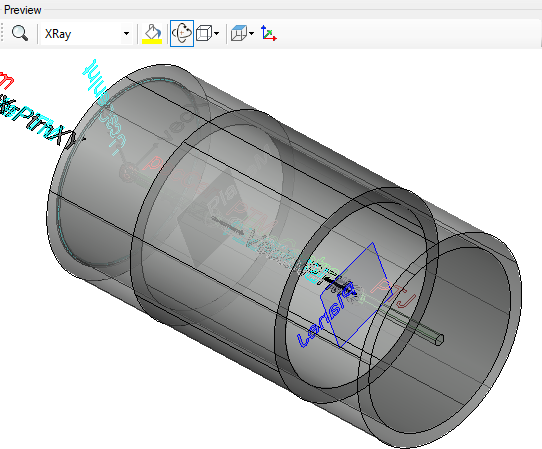

Planes are used in transformations of the type Mirror or solid manipulations of the type Slice:

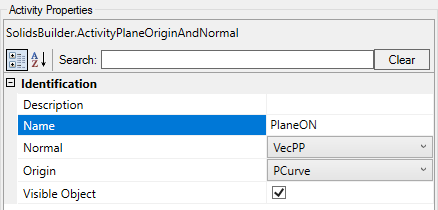

The activity Plane (Origin/Normal) has the following properties:

Identification
- Name - name of the activity
  The point name must follow the naming rules
- Origin - name of the point where the plane is located, or a point contained in the plane
- Normal Vector - name of normal vector ('a' x 'b', 90º shape with vector 'a' and vector 'b') to the plane:
- Object Visible - indicates whether or not the point should be drawn in the preview

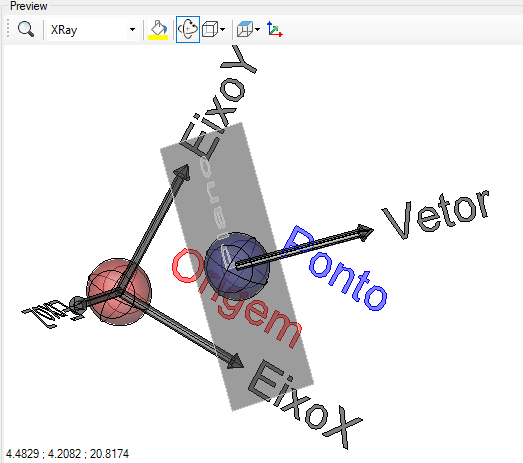

Note that the drawing represents a rectangle for the plane itself. This rectangle is merely illustrative, it has the function of indicating where the plane is.

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview
