Solids Builder - Mirror

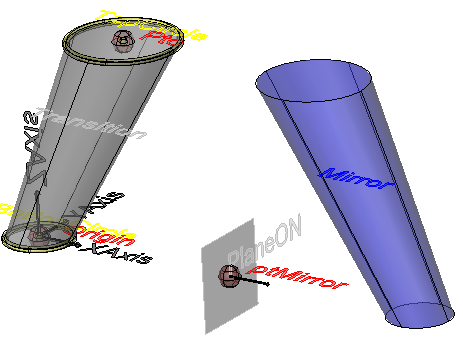

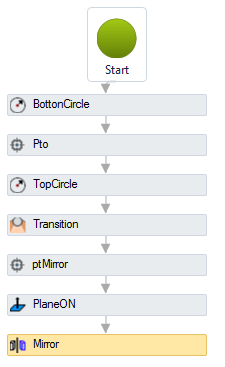

Mirror - creates a clone of anything drawable and mirrors it relative to a reference:

Note, the source item will not be modified. The geometry will be cloned and then mirrored with the given parameters.

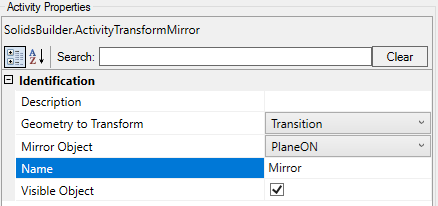

The Mirror activity has the following properties:

• Identification
  • Name - name of the activity
    The activity name must follow the naming rules
  • Geometry to Transform - name of the geometry to be transformed
  • Mirror - name of the geometry that will serve as a mirror
    The following geometries serve as a mirror:
    • Point
    • Vector
    • Plan
  • Object Visible - indicates whether or not the resulting geometry should be drawn in the preview



If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview
