Solids Builder - Plane (3 points)

Plane (3 points) - creates a reference plane passing through three known points:

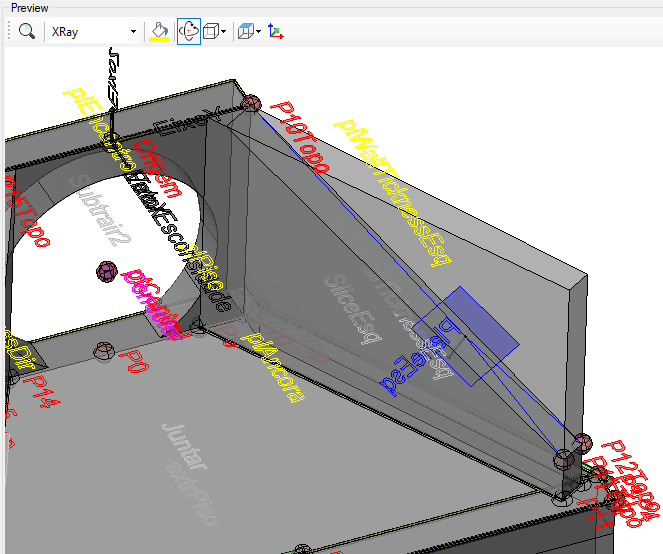

Planes are used in transformations of the type Mirror or solid manipulations of the type Slice. In the example below, the top of the wing side wall is cut in a plane passing through three points. These points are indicated in the figure by blue lines:

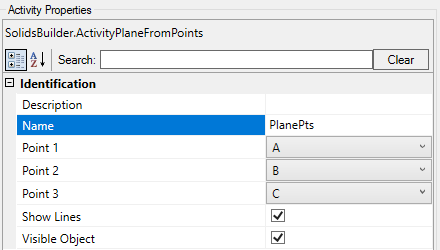

The activity Plane (3 points) has the following properties:

• Identification
  • Name - name of the activity
    The point name must follow the naming rules
  • Point 1 - name of point number 1
  • Point 2 - name of point number 2
  • Point 3 - name of point number 3

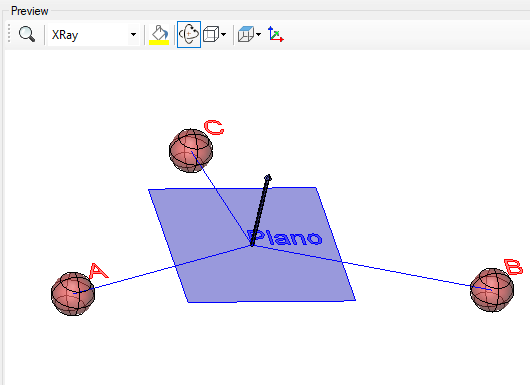

  • Show Lines - draws lines (the blue lines in the wing example) connecting the three given points to the calculated origin of the plane (which will be at the centroid of the triangle)
  • Object Visible - indicates whether or not the point should be drawn in the preview

Note that the drawing represents a rectangle for the plane itself. This rectangle is merely illustrative, it has the function of indicating where the plane is.

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

Properties (for use in VB expressions)

implements the properties of the plans

Methods (for use in VB expressions)

implements the methods of the plans
