SOLIDOS Modeler - Fillet

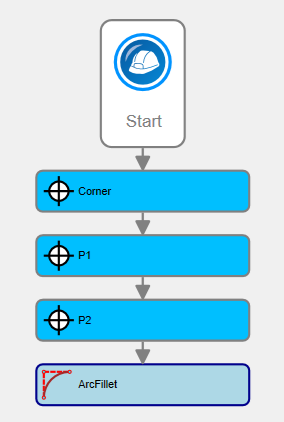

Fillet - creates an arc at a point, rounding the segments that reach it:

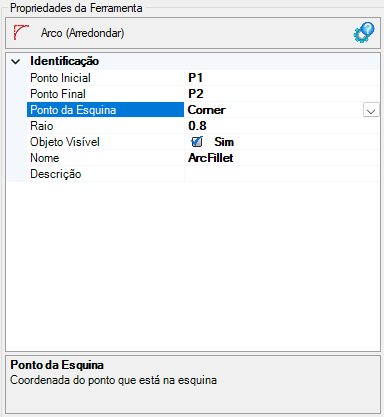

The Chamfer activity has the following properties:

• Identification
  • Name - name of the activity
    The arc name must follow the naming rules
  • Start Point - name of the point where the arc starts
  • End Point - name of the point where the arc ends
  • Corner Point - name of the point name of the point that is on the corner
  • Radius - an VB expression to evaluate the radius value

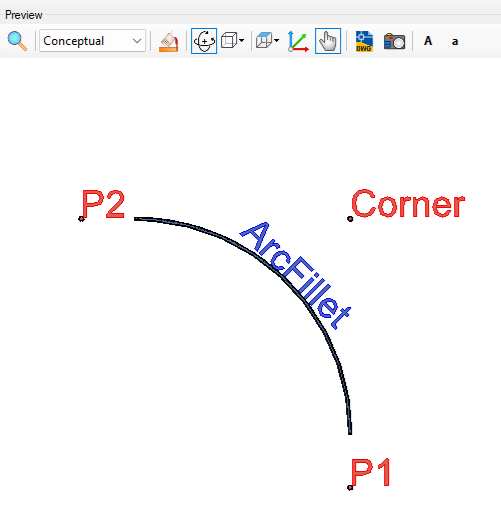

  • Visible Object - indicates whether or not the arc should be drawn in the preview



If the text is too large/small, or the sphere representing the point is too large or small, use the buttons (A, a, , ) at the top of the screen to change the preview.

Properties (for use in VB expressions)

Implements the properties of curves and also:

• Area - area of ​​the circle (real number)
• Radius - radius of the circle (real number)
• StartAngle - starting angle (real number) in radians
• EndAngle - End angle (real number) in radians
• Vector - normal circle vector ( vector)
• Center - center of the circle ( point)

Methods (to use in expressions VB)

implements the methods of curves
