Types of Pipes and Structures

Properties defined for Pipes and Structures

See the properties defined for structures and pipes in pipe catalog provided ONLY BY C3DRENESG:

Structures
- Drainage Structures
  The drainage structures possess some properties that apply only to them, such as:
  1. AreaContr - Contribution area
  2. Coef_C - Waterproofing coefficient
  3. Coef_TC - Concentration time
- Sewer Structures
  Sewer structures have some properties that only apply to it:
  1. ContrIni - Initial contribution
  2. ContrFim - Final Contribution

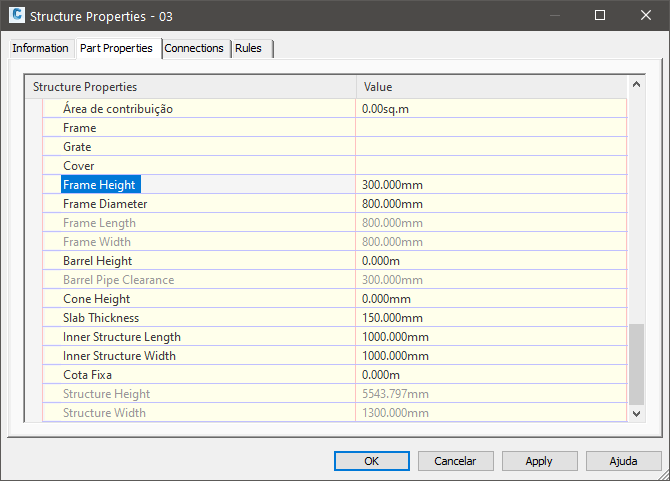

These properties are available on the structures and properties can be included in the labels:
Pipes
The pipes have specific properties for excavation:
1. Berço - Settlement
2. LargVala - Trench width
3. TaludeVala - Ditch slope
In the case of sewer pipes:
1. CoefUtil - Coefficient of use.
2. TqDg - Pipe down, which is an acronym: DG to step, or TQ paw down-pipe. See Sewer Structures.
After the worksheet has been calculated, you can still display the labels of the pipe properties:
1. Flow - Flow rate
2. LaminaEsc - water height
3. Velocidade - Flow speed
The pipe is possible to calculate and show skew pipe, using the command CCalcEsconsidade, define two properties:
1. EsconsidadeTubo - skew angle between 0 and 90 degrees
2. Lado - skew side, right or left

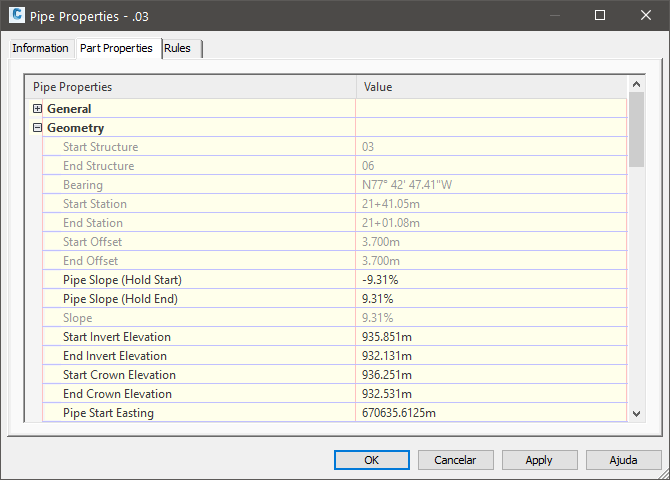

These properties are available:

All these properties can be viewed using the

CLIST command.

See:

Add properties to pipes
