CCalcEsconsidade
Calculates and sets the skew in a pipe with respect to its reference alignment.
If the pipe has not associated alignment, causes error.

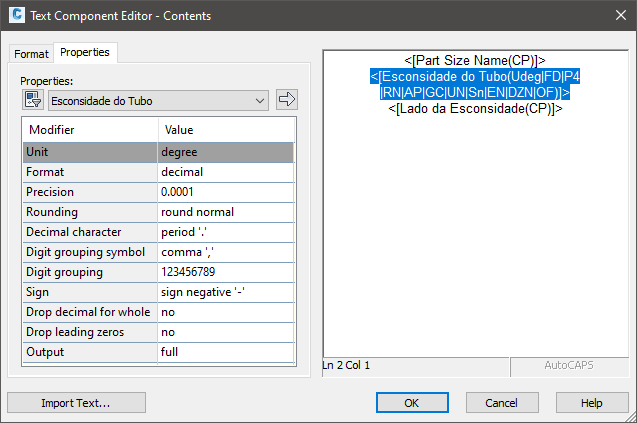

To show the value of skew in Civil 3D labels, use the properties as shown:

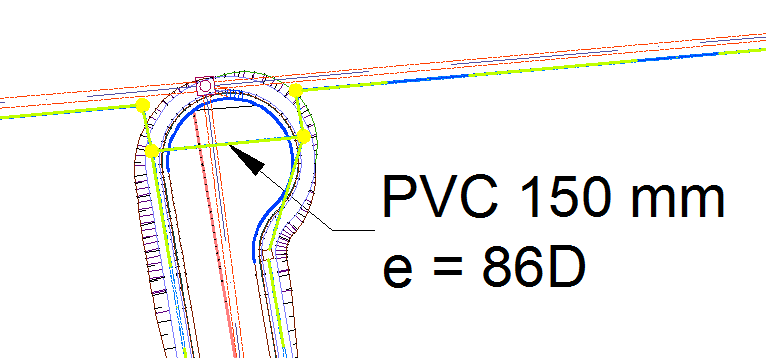

The result will be:
Tip:
If the property is not yet available in the Label Style Composer, see:
Add parameter
in the properties of pipe
CALIN
, to associate an alignment to multiple pipes if necessary.
CCalcEsconsidade CCalcEsconsidade
Tip:
Add parameter in the properties of pipe
CALIN, to associate an alignment to multiple pipes if necessary.
