Calin
The command CALIN sets the
reference alignment in structures and pipes.
When using the command, it will prompt the selection of alignments.
If you select more than one, the program will choose the most
next, that is, one in which the structure having the smallest offset from the alignment.
Then it asks the maximum offset that the structure may be an alignment for it to be chosen.
Thus, if the alignment is chosen farther than this value, it will not be assigned to the structure.
Finally choice structures and pipes.
Optionally, you can select a
entire network, simply click Enter, and select the network.
This command is useful when you use the command
COffset and
Crot, because they depend on the alignment
reference.

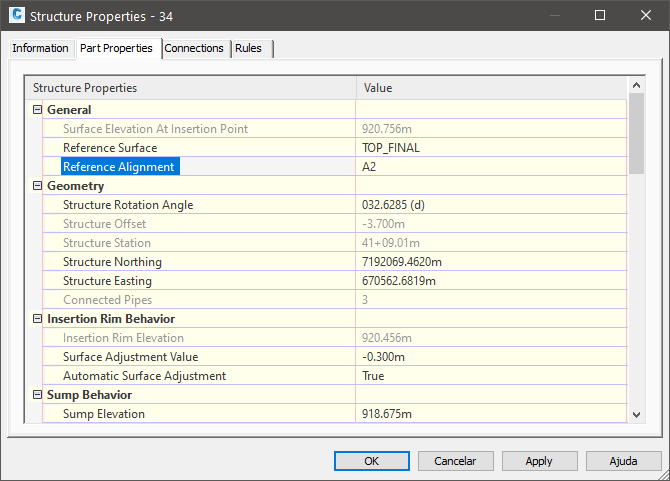

In the end, the alignment will be defined:
