COffset

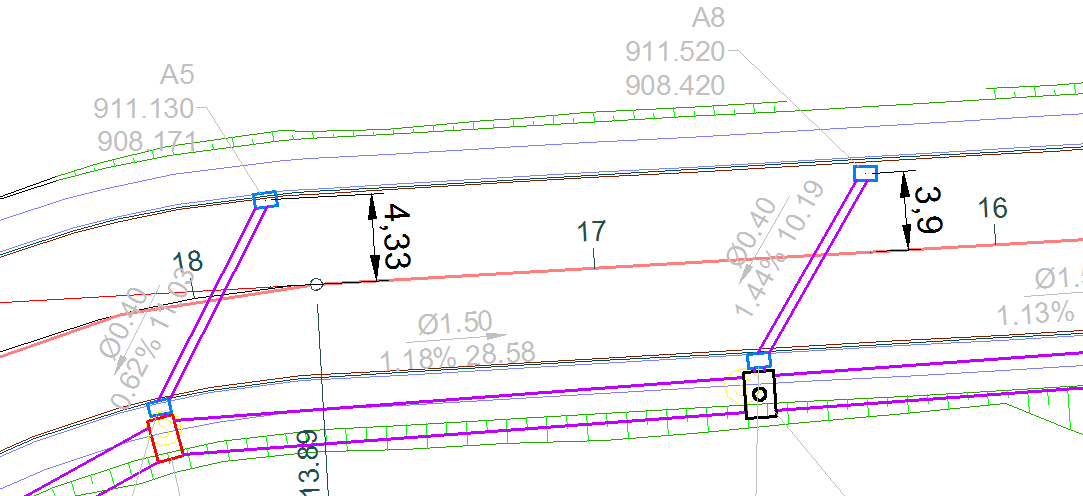

Consider the figure below. Note: that the culverts are not properly leased relative to the axis of the track. This command is to fix it.



To call him, it will ask the offset to be set, then the selection of structures. Click ENTER if you want to set for all network structures.

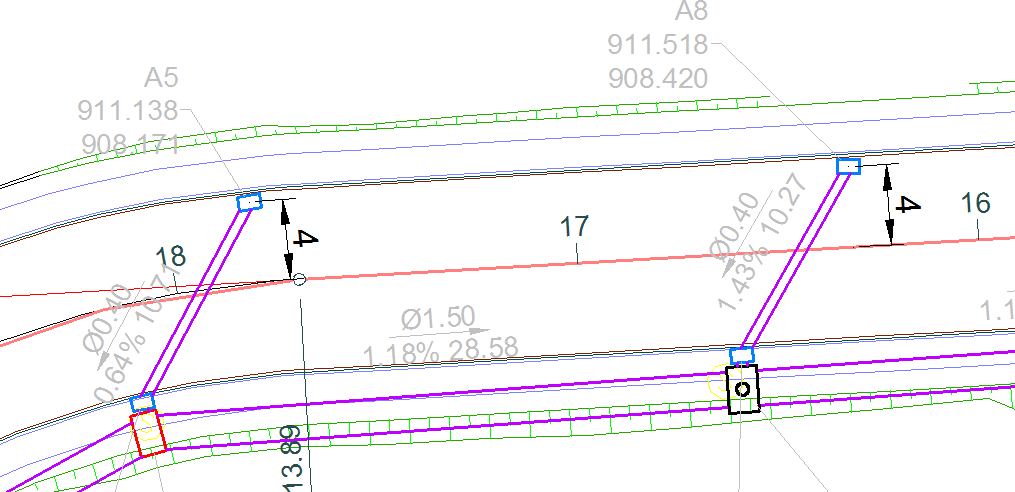

The culverts were spaced alignment on 4 meters.

For this command to take effect on the selected structures, they MUST have an reference alignment defined in its properties, otherwise it does nothing.

If you forgot to set the reference alignment in the pipenetwork properties, no structure will have. If you want to define them, you can do it manually one by one or use the command Calin to set the alignments before using the command COffset.
