Crot

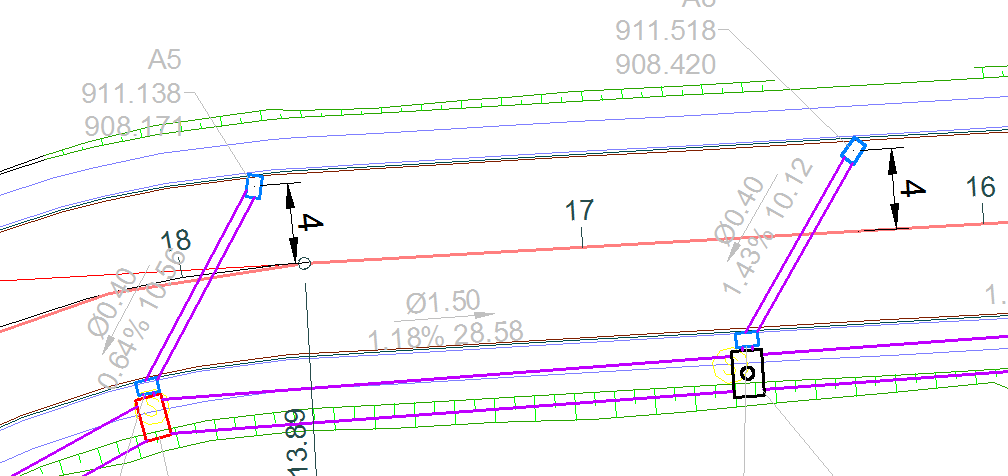

Consider the figure below.
Note: that the culverts are leased correctly
relative to the axis of the runway, but not its rotation.
This command is to fix it.
To call it, it will ask the selection of structures.
Optionally, click ENTER
to select an entire network.

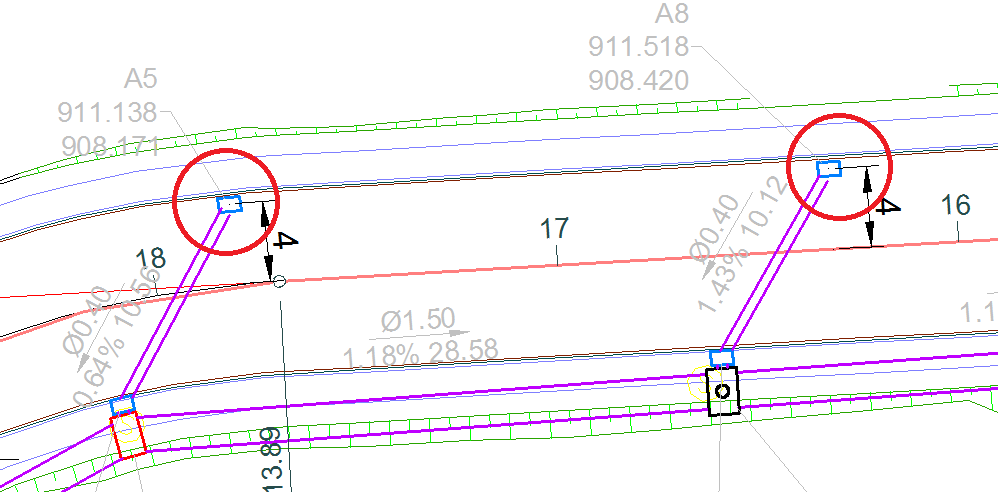

See the result:
The culverts were rotated in order to align with the reference alignment.
For this command to take effect on
structures selected, they MUST have an alignment of reference defined in properties,
otherwise it does nothing.
If you forgot to set the reference alignment
the properties of pipenetwork, no structure will have.
If you want to define them, you can do it manually one by one or use the command
Calin to set the alignments before using the Crot command.
