The Segments properties are:
| Property | Type | Description |
|---|---|---|
| Start | Integer | Number of start vertex |
| End | Integer | Number of the end vertex |
| Name | Text |
Name of the start vertex
In the Civil 3D, will be sought CogoPoints on polygon vertices to inform the vertex name and is used to Name property, if any, otherwise, Point Number In the AutoCAD, will be sought blocks that are defined in the settings |
| Description | Text |
Description of the start vertex
In the Civil 3D, will be sought CogoPoints on polygon vertices to inform the vertex name and is used to Raw Description In the AutoCAD, will be sought blocks that are defined in the settings |
| Start Vertex | Expansive | Start vertex |
| End Vertex | Expansive | End Vertex |
| Length | Dimension | Length of the segment |
| Arc | Expansive | Use to create the arc segment macro |
| Line | Expansive | Use to create the line segment macro |
Note: An edge of the polygon that generates polyline may generate one or more segments, as this can make the edge bordering one or more bordering. In these cases, the program creates a thread for each fronts. This happens, for example, this image:
Note that only the vertices marked really are in the polyline. But to be processed as polygon, the two points marked with arrows are included.

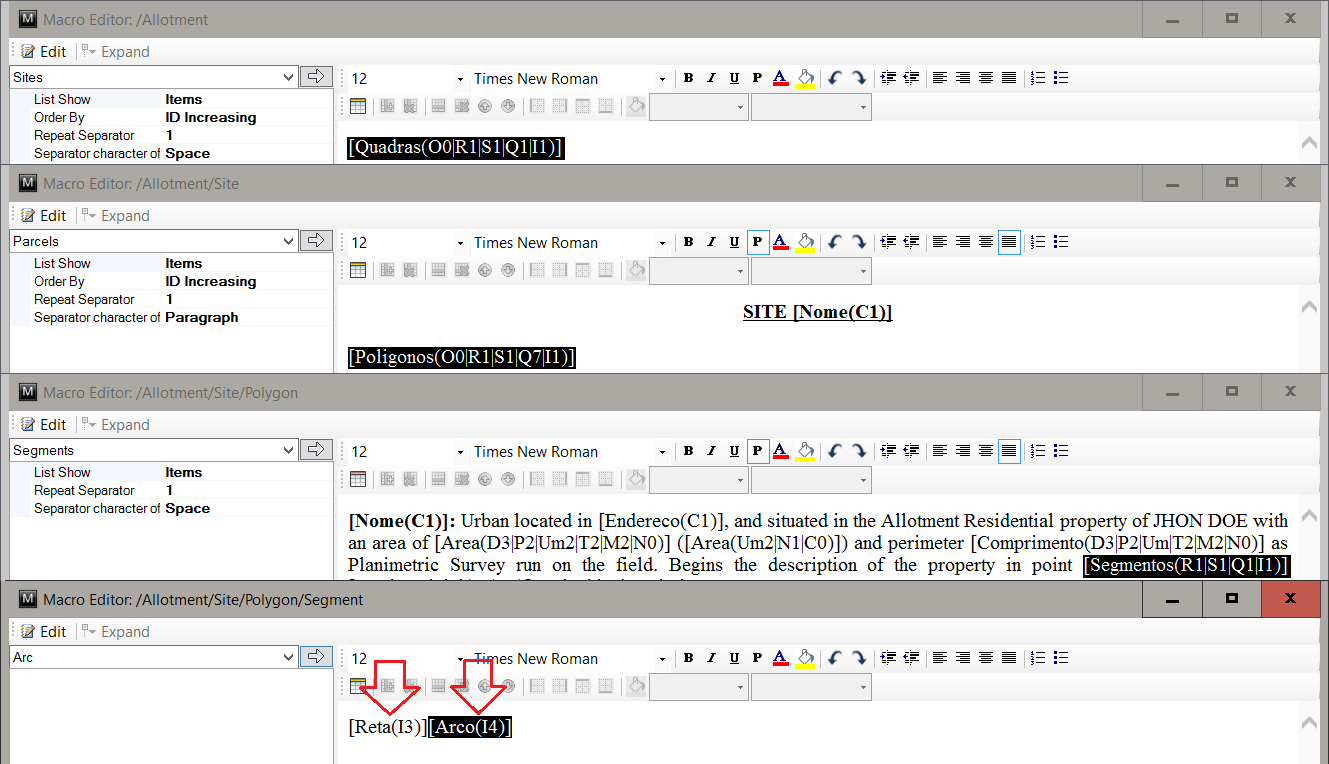

In the case of polygons with arc segments and straight, it must add the two macros, using the Arc and Straight properties, as follows:
Segments contains:
