Lines


Apart from the segment properties, the Lines contains:

Property Type Description

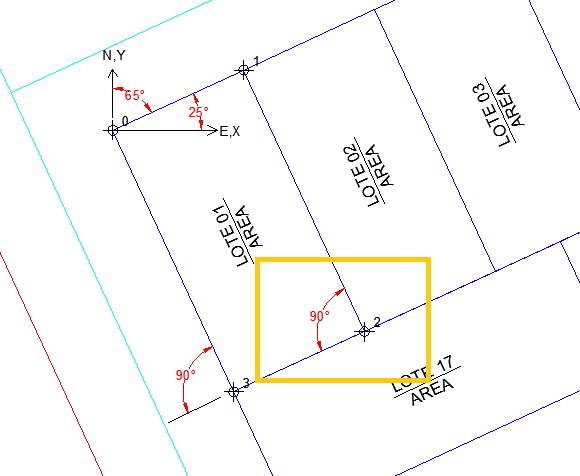

Internal Angle Angle internal angle formed by the Lines line and previous segment:
Side deflection Text which side to deflect the thread from the previous segment. Can be:
  • Deflects to the right
  • Deflects to the left
  • Follows the same direction

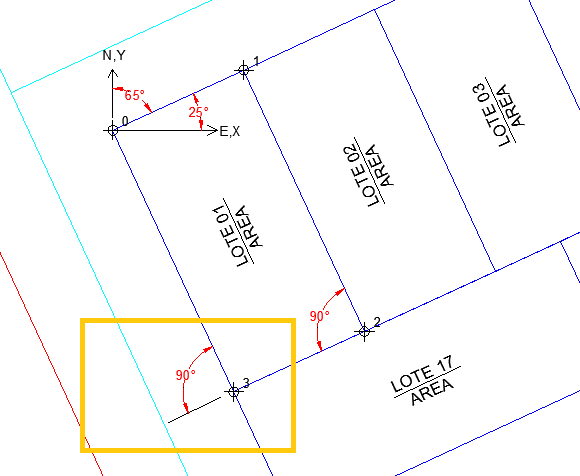

Deflection Angle Angle of deflection of the thread in relation to previous segment

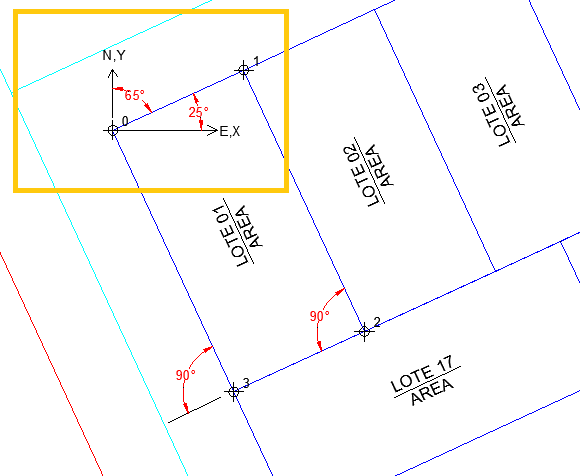

Angle Angle Angle segment relative to the X or Y axis, depending on the formatting:
  • Azimuth - Angle referenced to north (y axis)
  • Simple Angle - Angle referenced to east (x axis)
