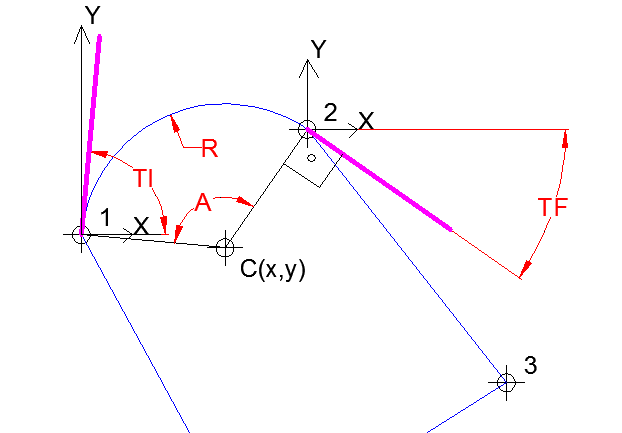

The arcs segments, contains:
Property | Type | Description |
---|---|---|
Center | Coordinated | Coordinate of the center (C) of the arc segment |
Radius | Dimension | Arc radius (R) |
Chord | Dimension | Straight-line distance between the initial and final vertex |
Central Angle | Angle | central angle (A) of the arc segment |
Initial Tangent | Angle | Angle of the tangent to the arc at starting point of the arc segment (TI) |
End Tangent | Angle | angle of the tangent to the arc end point of the arc segment (TF) |
Arc Spin | Text | Direction of arc rotation (clockwise or counter-clock) |
Lado do Arco | Text | Arc side in relation to the chord (left or right) |
