MCORRSURF


The command MCORRSURF has been developed to facilitate the creation of surface from several corridor at once.

Often we have a subdivision with N corridors that we need to design surfaces and the task of creating these surfaces can become quite time consuming if we have many corridors. I myself have done for over 30. ..

So come on, have their various corridors, call the MCORRSURF

You will be asked to select the corridors, then opens this screen:

Here you can set the surface name, style, link or FeatureLines to add to surface.

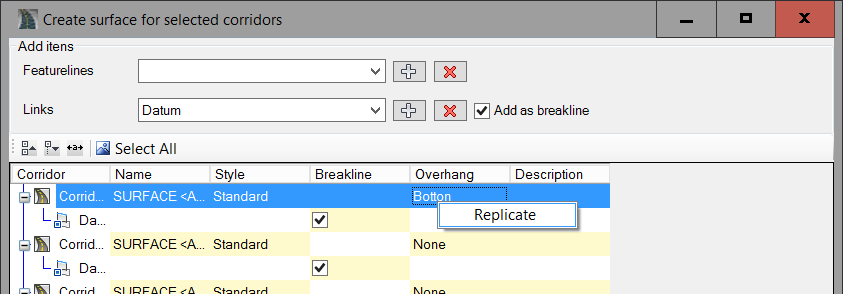

Some columns may repeat the same value on all lines. Click the right mouse button on a cell and click Replicate:

Finally, click the OK
