Mcorredor


The command MCORREDOR has been developed to facilitate the creation of corridors of several alignments at once.

Often we have a subdivision with N alignments that we need to design corridors and the task of creating these corridors can become quite time consuming if we have many alignments. I myself have done for over 30 ...

So come on, have their various alignments, design profile and typical sections in the following section call the MCORREDOR

You will be asked to select the alignments, then opens this screen:

Here you can set the initial station, end station, profile, typical section (assembly), target surface, the corridor style and template name.

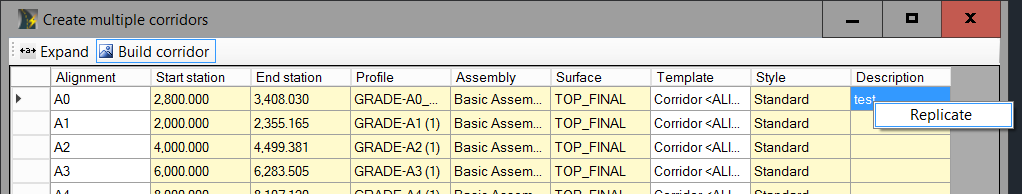

Some columns may repeat the same value on all lines. Click the right mouse button on a cell and click Replicate:

Finally, click the OK
