SWMM Shapes - Custom Section

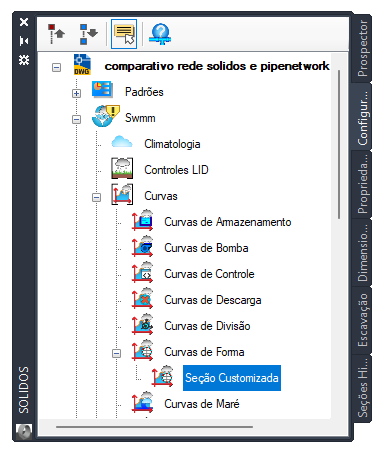

THE Custom Section of SWMM, implements custom section galleries. Custom sections are saved in the Swmm / Curves / Shape Curve node:

A section of this type must be given in terms of the ratios (Height/Total Height) and (Width/Total Height):

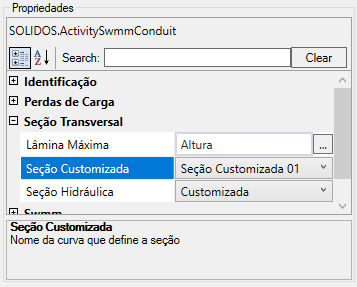

The relevant geometry property for this section is the Maximum Height and the Custom NSection:

• Cross section
  • Maximum Height - Actual Section Height of the section
  • Section - Name of custom section to use in modeling

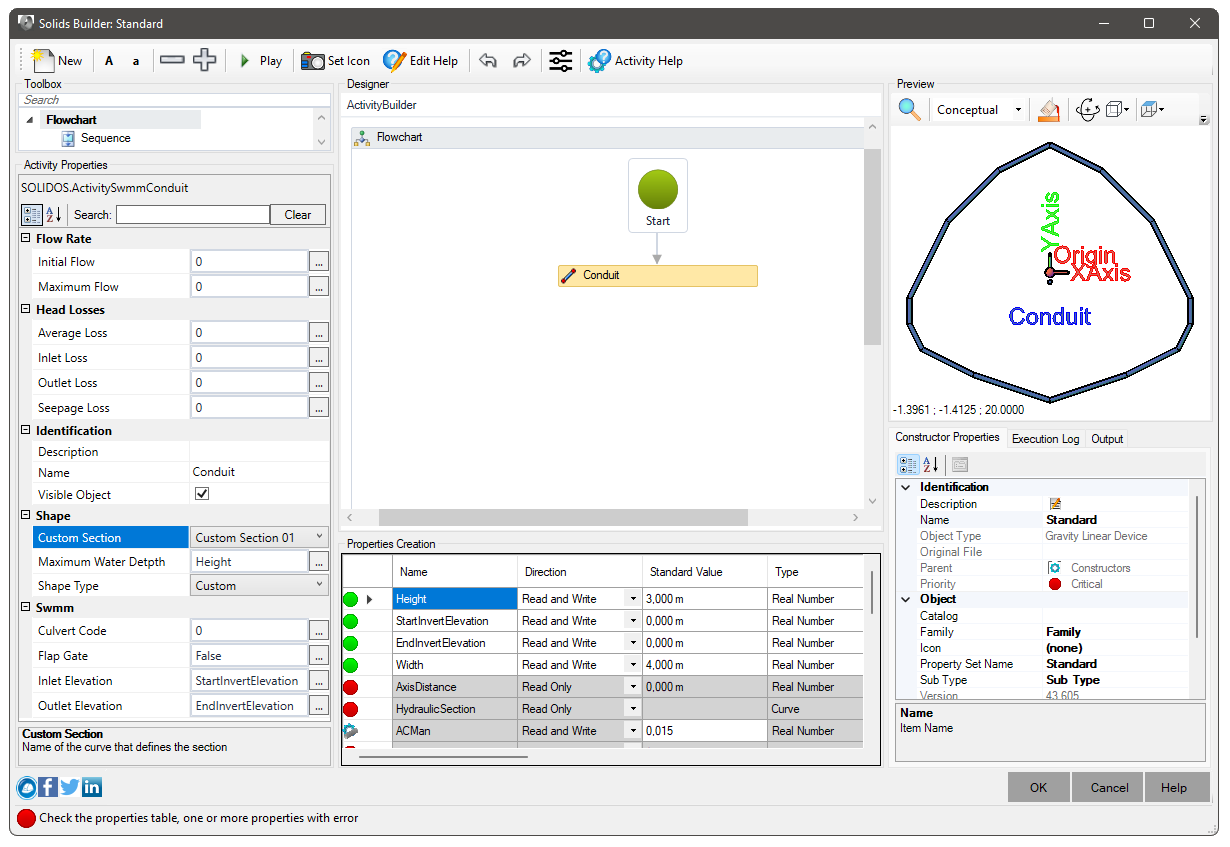

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the device's internal section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
