SCONNECTOR

The command SCONNECTOR enables/disables the OSNAP CONNECTOR

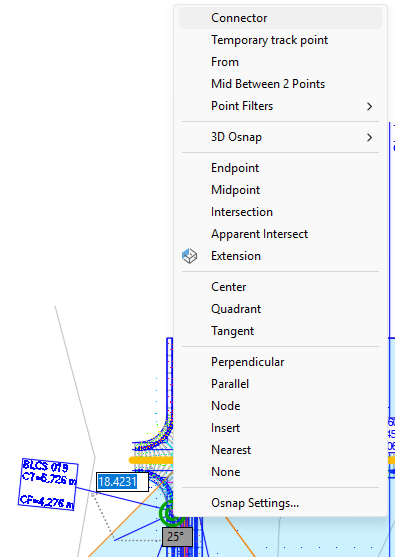

The command can be accessed in the Object Snap context menu (shift + right mouse button), just like for the ENDPOINT:

Its appearance is like this:

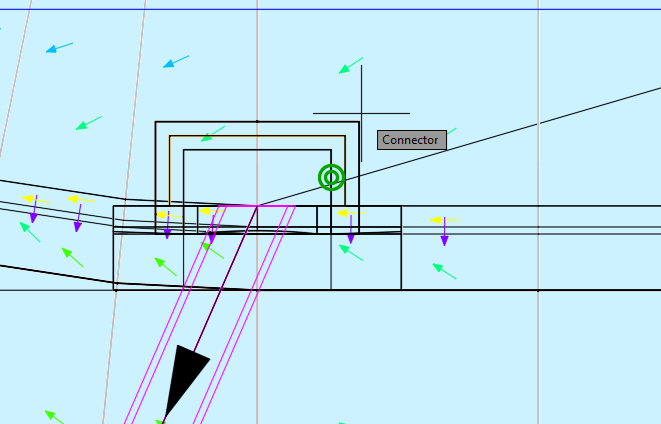

When you are When launching the network, as the insertion point of the structure approaches the initial or final point of the tube, the program shows that it can connect:

Note that the icon appears indicating that the devices will be connected if the point is clicked

All the device connectors also appear, which can be in the color:

• red: The device cannot connect to this connector because it violates one of the connection rules
• green: The device can connect to this device, to this connector

If you bring the linear device close and capture the osnap connector, it will be stretched to the connector

Connectors appear on devices whose modeler implements the Connector tool
