Solids Builder - Rotate 3D

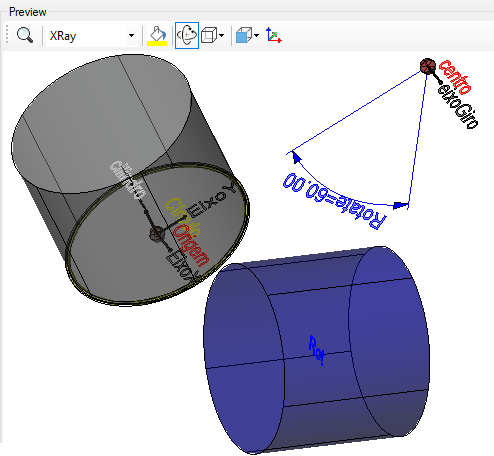

Rotate 3D - creates a clone of anything drawable in another position, rotated relative to an point and Axis of rotation:

Note, the source item will not be modified. The cloned geometry is then rotated to another position.

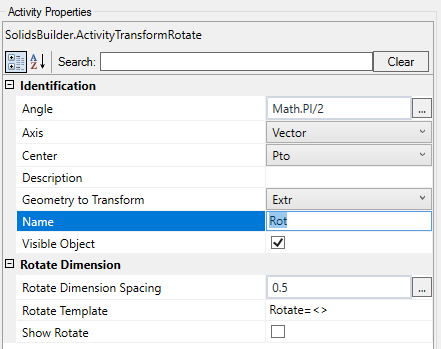

The Rotate 3D activity has the following properties:

• Identification
  • Name - name of the activity
    The activity name must follow the naming rules
  • Geometry to Transform - name of the geometry to be transformed
  • Axis - name of the vector that will serve as the axis of rotation
  • Center - name of the point that will serve as the center
  • Angle - a numerical value or a VB expression the angle, positive counterclockwise in the plane of rotation
  • Object Visible - indicates whether or not the geometry should be drawn in the preview


• Angle Dimension
  • Dimension Offset - VB expression that distances the dimension line
  • Dimension Rotation - indicates whether to draw a dimension at the angle of rotation
  • Dimension Template - a text template that provides the dimension
    Use <> for the dimension (Example: Rotate = <>)

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview
