Solids Builder - Merge

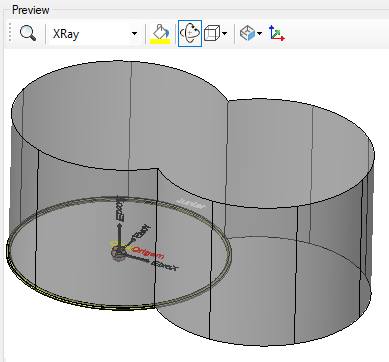

Join - Junctions the selected solids:

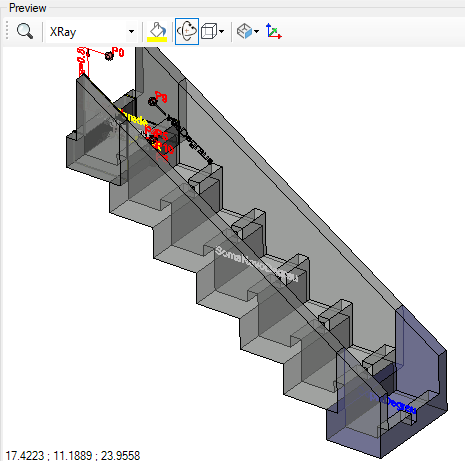

This activity is used to compose a complex solid, for example, To draw a stairway in steps in the flowchart example above, a basic step is drawn and repeated as many times as necessary:

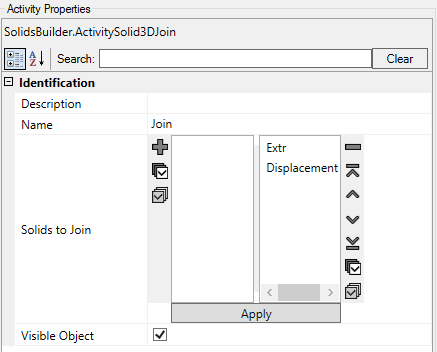

The Join activity has the following properties:

• Identification
  • Name - name of the activity
    The activity name must follow the naming rules
  • Object Visible - indicates whether the resulting solid will be drawn in the preview
  • Solids to Join - indicates the list of solids to be used. At least one solid must be selected

The Join activity requires a solid list editor. This editor is the same as the activity Polyline.

The buttons have the following functions:

• Move to Top - moves the selected items to the top of the list
• Up - moves the selected items up by one position
• Down - moves the selected items down by one position
• Move to Bottom - moves the selected items to the bottom of the list
• Add - adds the items selected from the left list (available points) to the right list (used points)
• Remove - removes selected items from the list on the right (used points)
• Select All - selects all items
• Invert Selection - inverts the list selection
• Apply - applies the list selection to the activity.
  To have it drawn with the chosen items, click on this button

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview
