SOLIDOS Modeler - Intersection

Intersection - Creates a solid by intersecting selected solids in the source solid:

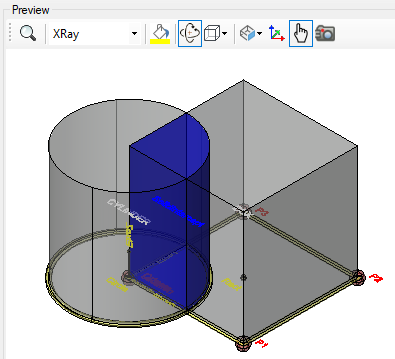

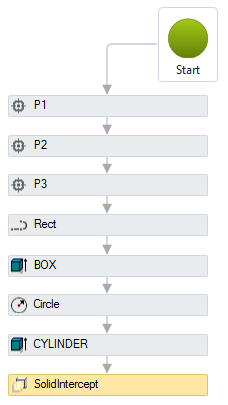

This activity is used to compose a complex solid, for example, to draw a manhole and cut holes in the wall where the pipes connect:

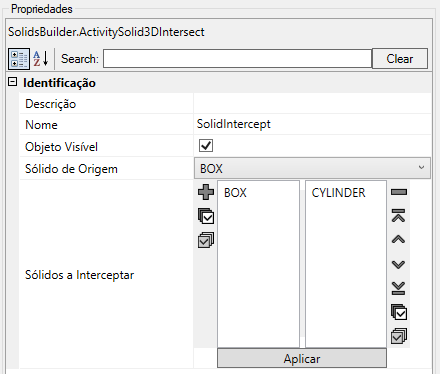

The Intersection activity has the following properties:

• Identification
  • Name - name of the activity
    The activity name must follow the naming rules
  • Object Visible - indicates whether the resulting solid will be drawn in the preview


  • Source Solid - name of the source solid, from which the solids selected in the list will be subtracted
  • Solids to Intercept - indicates the list of solids to intersect in the source solid.
    To edit, click the button () that appears in this field, or select this property in the properties box. It will be open or geometry list editor

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview
