Solids Builder - Corridor

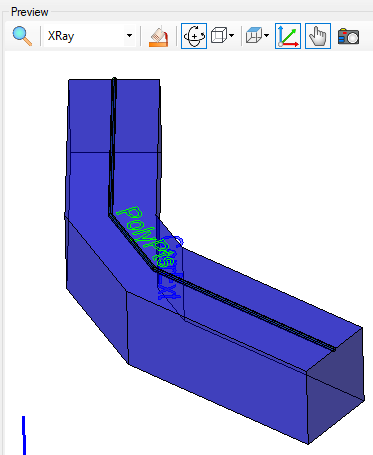

Corridor - creates a solid by sweeping a plane figure ( circle or polyline) into a curve, such as the Civil 3D corridor, that is, with the section always vertical:

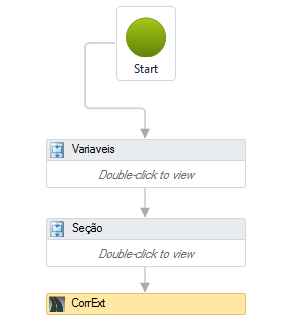

The Corridor activity is typically used to create longitudinal, or linear, devices where the section is constant:

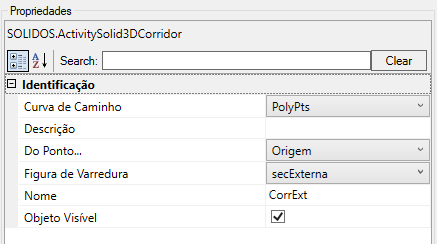

The Corridor activity has the following properties:

• Identification
  • Name - name of the activity
    The name of the scan must follow the naming rules
  • Sweep Figure - name of the flat curve to be extruded ( circle or polyline).

  • From Point - The typical section must be drawn in the XY plane and the reference point of the adopted section must be indicated
    It will be used as origin to move the typical section along the axis curve vertices
  • Path Curve - name of the curve where the section will be slid
  • Object Visible - indicates whether or not the point should be drawn in the preview

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview
