Solids Builder - Point Stretch

Stretch Point - creates a Grip Point at the specified point, with the ability to "stretch" (modify a length property):

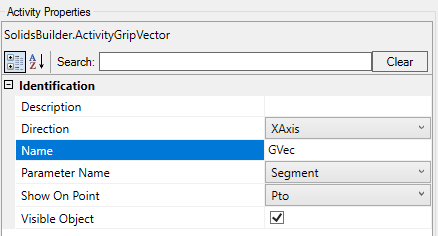

The activity Stretch Point has the following properties:

• Identification
  • Name - name of the activity
    The point name must follow the naming rules
  • Show on Point - displays the point where the grip will appear
  • Parameter Name - parameter name that will be modified when dragging the Grip Point

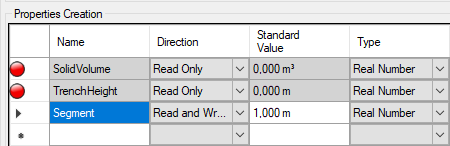

    Note, as this activity modifies a numerical value, this must be a property of the device itself, therefore, this value should appear in the list of Creating Properties:


  • Object Visible - indicates whether or not the point should be drawn in the preview

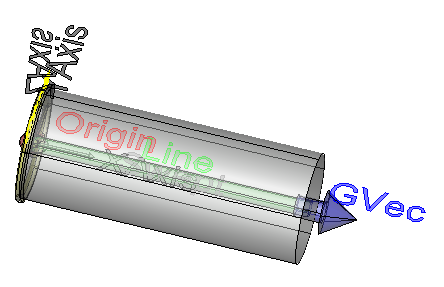

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

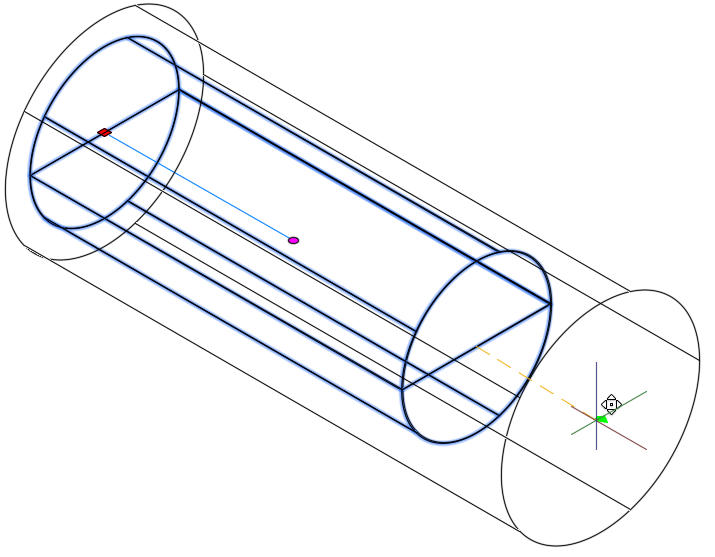

In plan view, the Stretch Point can be moved in any direction:
