Solids Builder - Grip Point

Grip Point - creates a Grip Point on X, Y and Z ordinates:

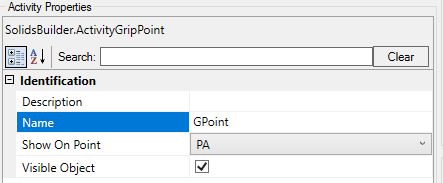

The Grip Point activity has the following properties:

• Identification
  • Name - name of the activity
    The point name must follow the naming rules
  • Show on Point - displays the point where the grip will appear

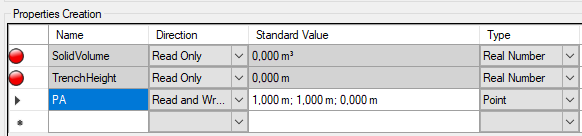

    Note, as this activity modifies a point, this must be a property of the device itself, so this point should appear in the list of Property Creation:

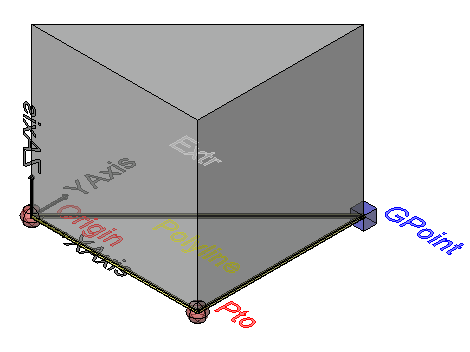

  • Object Visible - indicates whether or not the point should be drawn in the preview

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

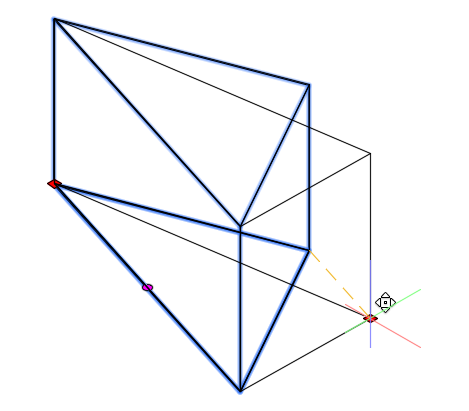

In plan, the Grip Point can be moved in any direction:
