Solids Builder - EPANET Nodes - Junction

Junctions are points in the network where Links come together and where water enters or leaves the Pressure Network.

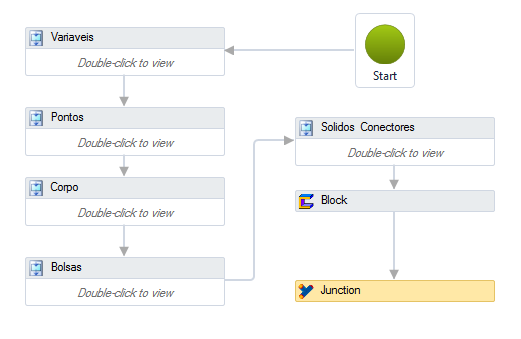

When you want to define a device as a junction, you must add the tool Junction to the Constructor:

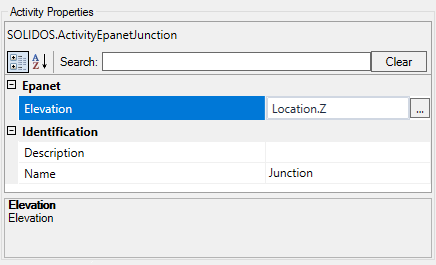

When adding the tool Junction, fill in your properties, in the tool's properties frame:

In the Constructor, the following properties must be filled in:

• Identification
  • Name - name of the activity
    The point name must follow the naming rules
  • Description - when the name of the activity is not enough to give context to the activity, use the description field
• Epanet
  • Elevation - Elevation of the node
    It must be associated with the property of the constructor that manages the device's Sump Elevation, for example:
