Solids Builder - Join Lines

Join Lines - join polylines, line, arcs that have coincident start and end:

Note, the program takes as reference the first curve selected. The others must be on the same plane as this one and must have a coincident start/end. If any line cannot be connected to the initial line, it will be discarded.

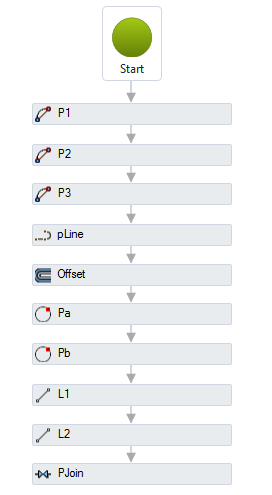

The Join Rows activity has the following properties:

• Identification
  • Name - name of the activity
    The activity name must follow the naming rules
  • Lines to Join - indicates the list of curves to be connected.

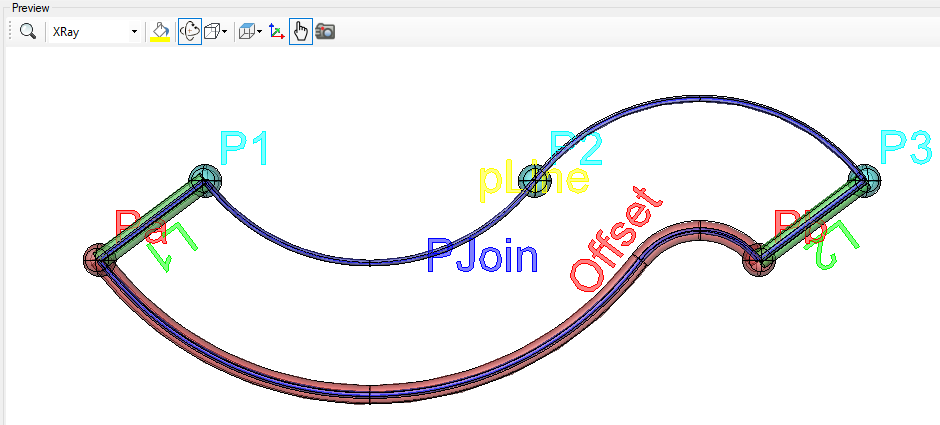

  • Object Visible - indicates whether or not the geometry should be drawn in the preview

If the text gets too big/small, or the sphere that represents the point gets too big or small, use the buttons ( A, a, , ) at the top of the screen to change the preview

Properties (for use in VB expressions)

implements the properties of the curves

Methods (for use in VB expressions)

implements the methods of the curves
