"CreateTmpPart" Error

During commands:

• SwapPipe
• SwapStruct
• C3dCalc

parts list will be listed by C3DRENESG and for that, it creates temporary parts of each partsize that is in the catalog.

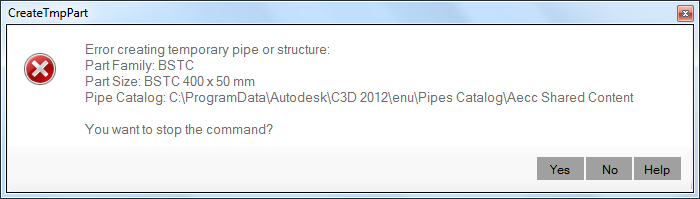

If parts list was originally done with a different catalog one you are currently using, this error occurs because Civil 3D will not find the part that is in parts listto create the same within the design: It's like trying to insert a block that does not exist. And that will cause this error:

To resolve this error:

1. Correct the location of Pipe Catalog
2. Remove the part of the family parts list, make a PURGE and AUDIT
3. Add part family back to parts list
