SWMM - Curves - Tidal Curves

Describe the variation of tide height as a function of time of day in SWMM Outfalls

It is assigned to a SWMM Outfall when the Constructor (point gravity) of device associates this to Outfall tool

A Tidal Curve has the following properties:

• Identification
  • Description (Description, String) - Use a user-friendly description when the item name is not sufficient
  • Name (Name, String) - item name
    Avoid very long names or names containing the following characters: '*', '>', '<', '/', '\', '"', ':', ';', '|', '=', '`', '#', ',', '?'
• Object
  • Priority (Priority, Enum) - Information regarding the item's current status. Can be:
    • Neutral: no issues
    • Critical: An issue preventing the calculation or use of the item
  • Error Assessment (CurveError, Enum) Result of the data assessment
  • Curve Data (CurveData, IListClonavel) - the curve data, with the following columns:
    • Time of Day (X, Double) - time of day to consider
    • Stage (Y, Double) - the value to be used

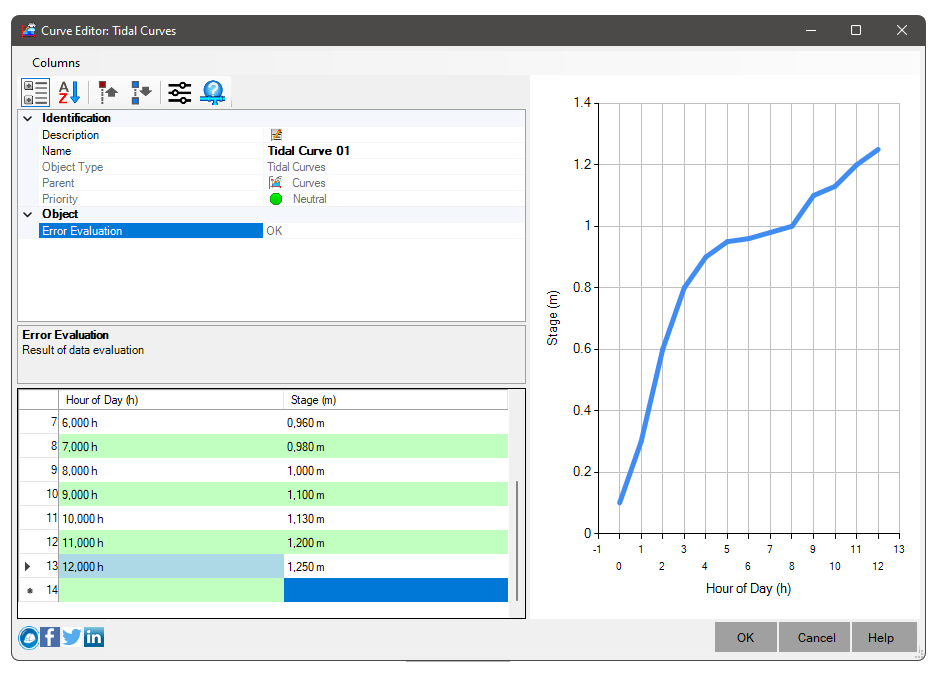

The data is populated in the table and plotted on the graph for better visualization:

The hours of the day must be in ascending order and not repeating and cannot be negative, otherwise the Priority property will be as Critical
