SWMM Shapes - Triangular

THE Triangular Section of SWMM, implements open triangular channels.

The geometry properties relevant to this section are the Top Width and the Maximum Height:

• Cross section
  • Maximum Height - Section Height
  • Top Width - Section Width

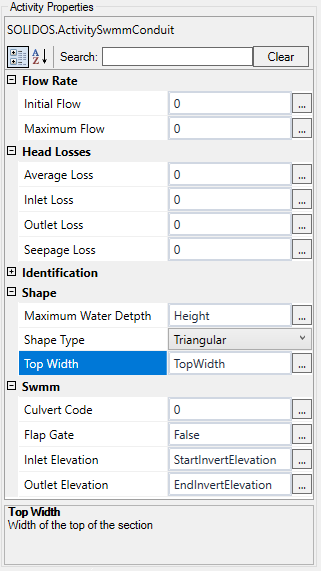

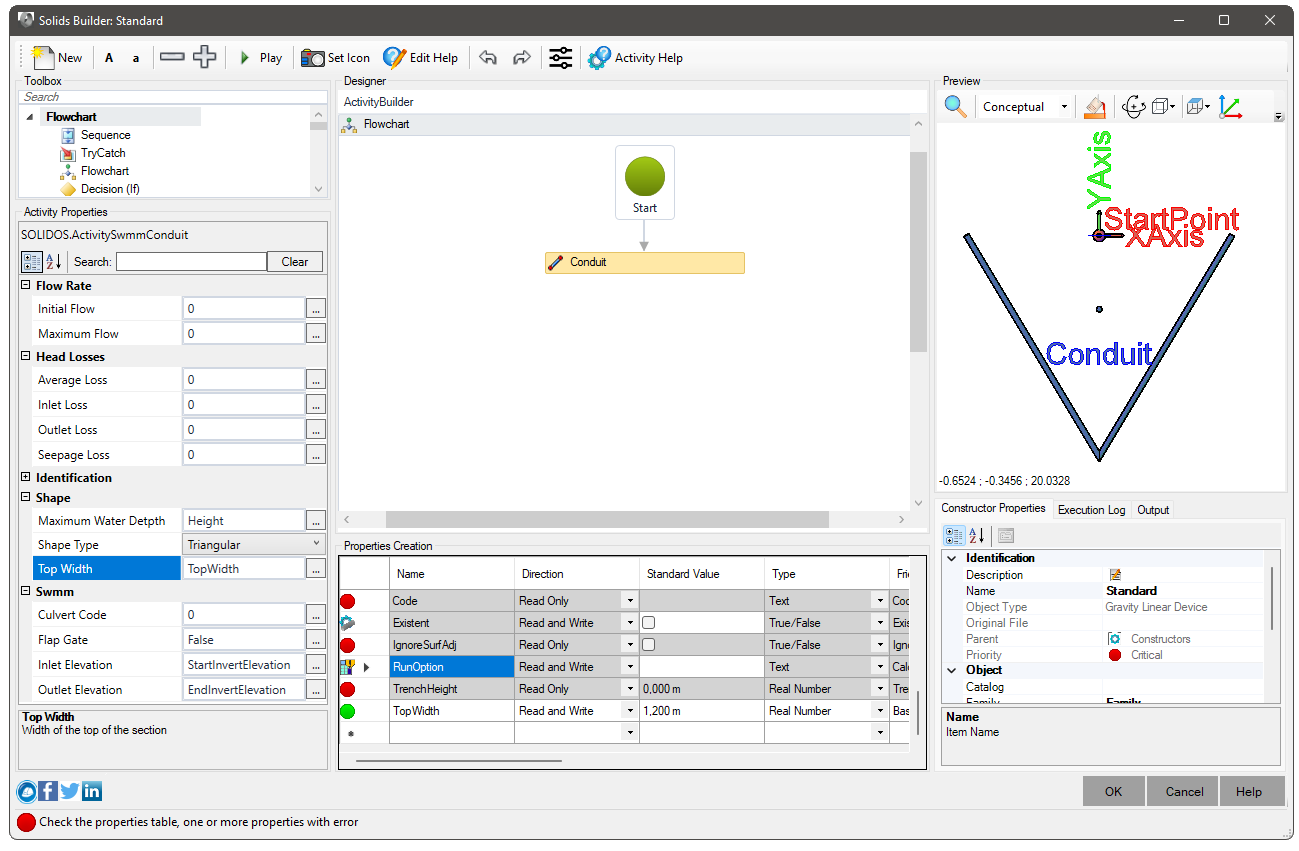

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the device's internal section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
