SWMM Shapes - Semi Elliptical

THE Semi Elliptical Section of SWMM, implements semi elliptical section galleries

The relevant geometry property for this section is the Maximum Height:

• Cross section
  • Maximum Height - Section Height

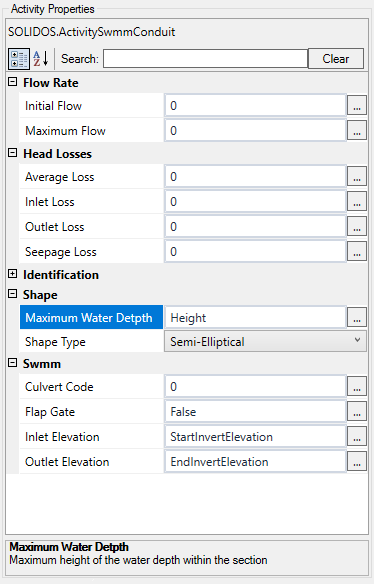

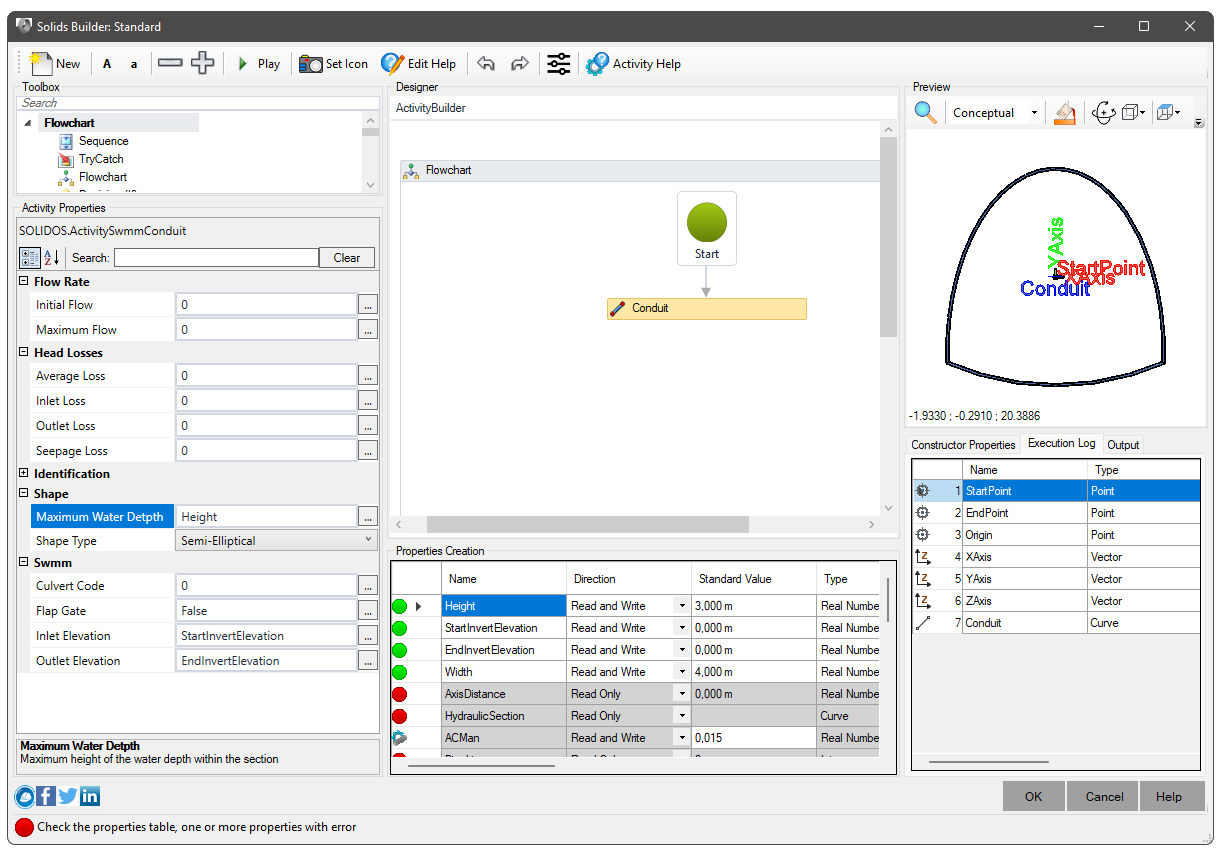

In SOLIDOS, the user must implement a property in the device constructor that describes that properties, for example:

Note: You can use the section generated by this activity to model the device's internal section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.

Note: The geometry shown is an approximation. In SWMM, there is no mention of the radius of the arcs
