SWMM Shapes - Semi Circular

THE Semi Circular Section of SWMM, implements Semi Circular section galleries

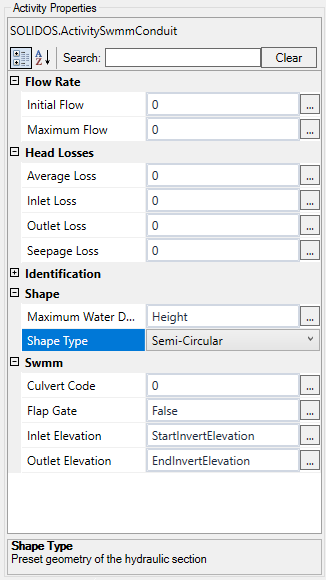

The relevant geometry property for this section is the Maximum Height:

• Cross section
  • Maximum Height - Section Height

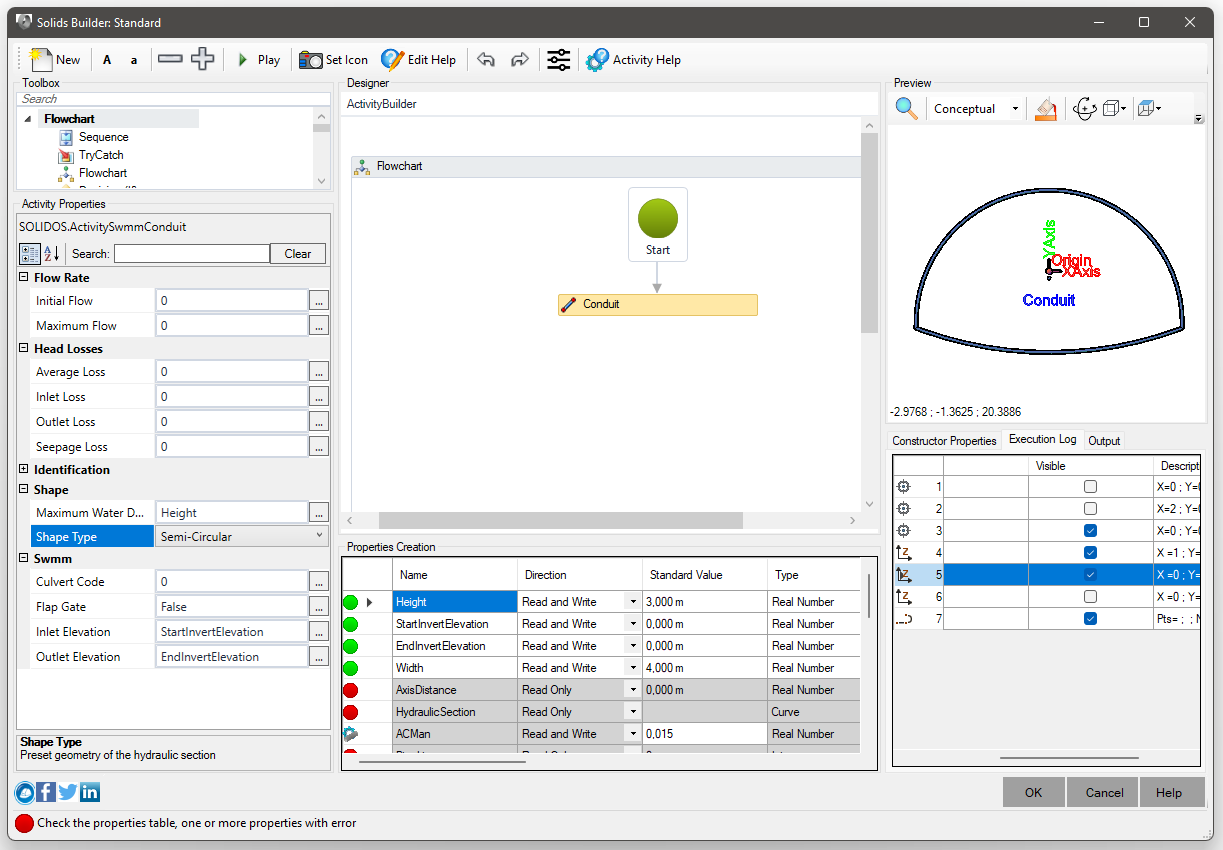

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the device's internal section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.

Note: The geometry shown is an approximation. In SWMM, there is no mention of the radius of the arcs
