SWMM Shapes - Rectangular with Triangular Base

THE Rectangular Section with Triangular Base of SWMM, implements rectangular channels with triangular base.

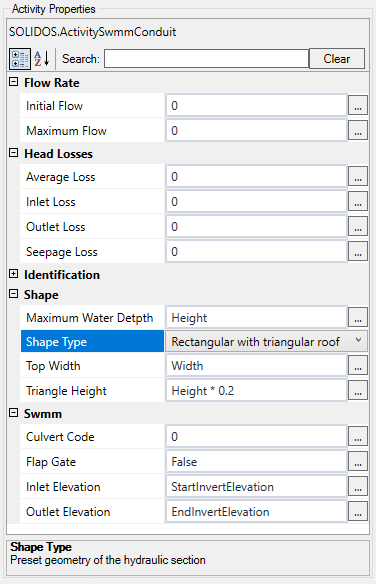

The geometry properties relevant to this section are Top Width and the Maximum Height and Triangle Height:

• Cross section
  • Maximum Height - Section Height
  • Top Width - Section Width
  • Triangle Height - Triangle height of the bottom section

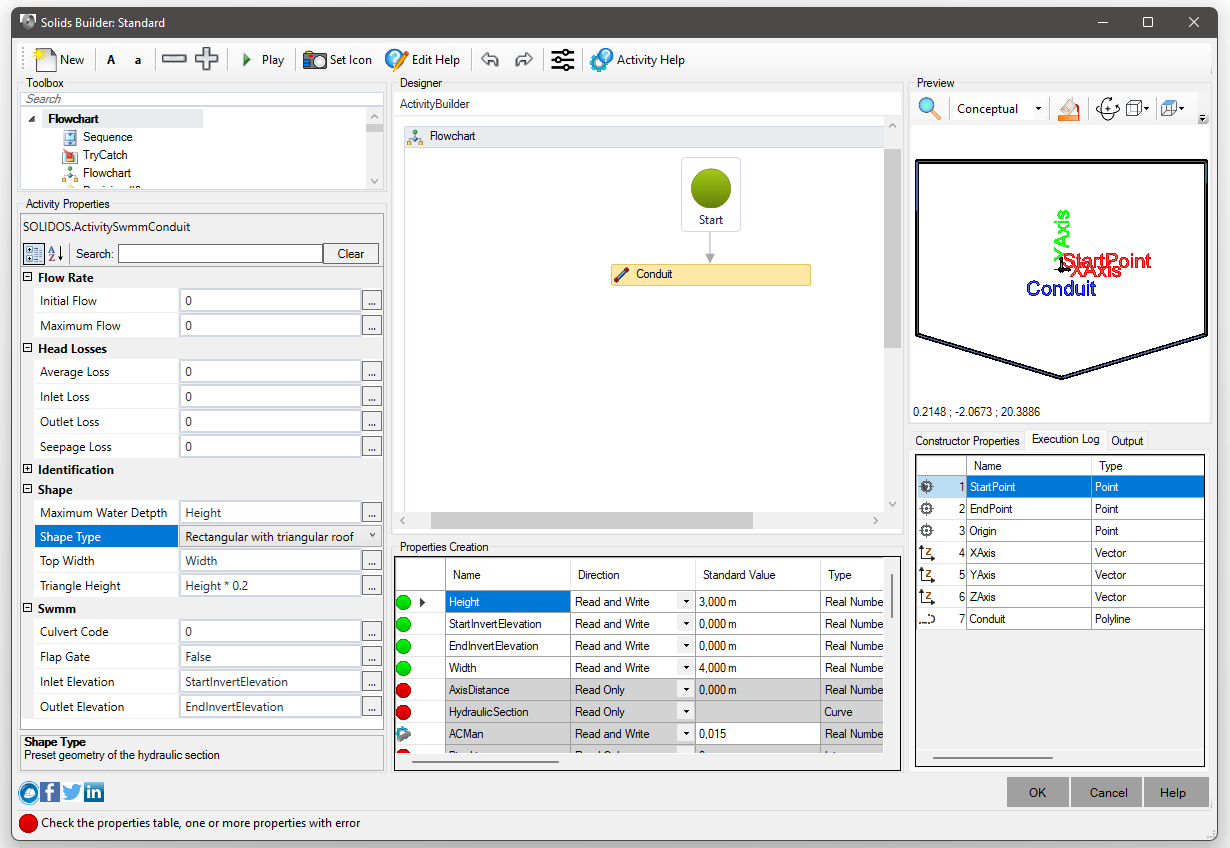

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the device's internal section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
