SWMM Shapes - Open Rectangular

THE Open Rectangular Section of SWMM, implements open channels.

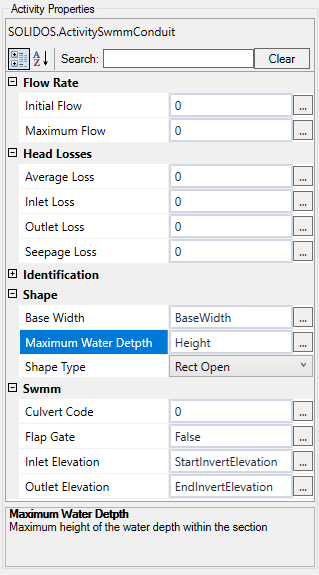

The geometry properties relevant to this section are the Base Width and the Maximum Height:

• Cross section
  • Maximum Height - Section Height
  • Base Width - Section Width

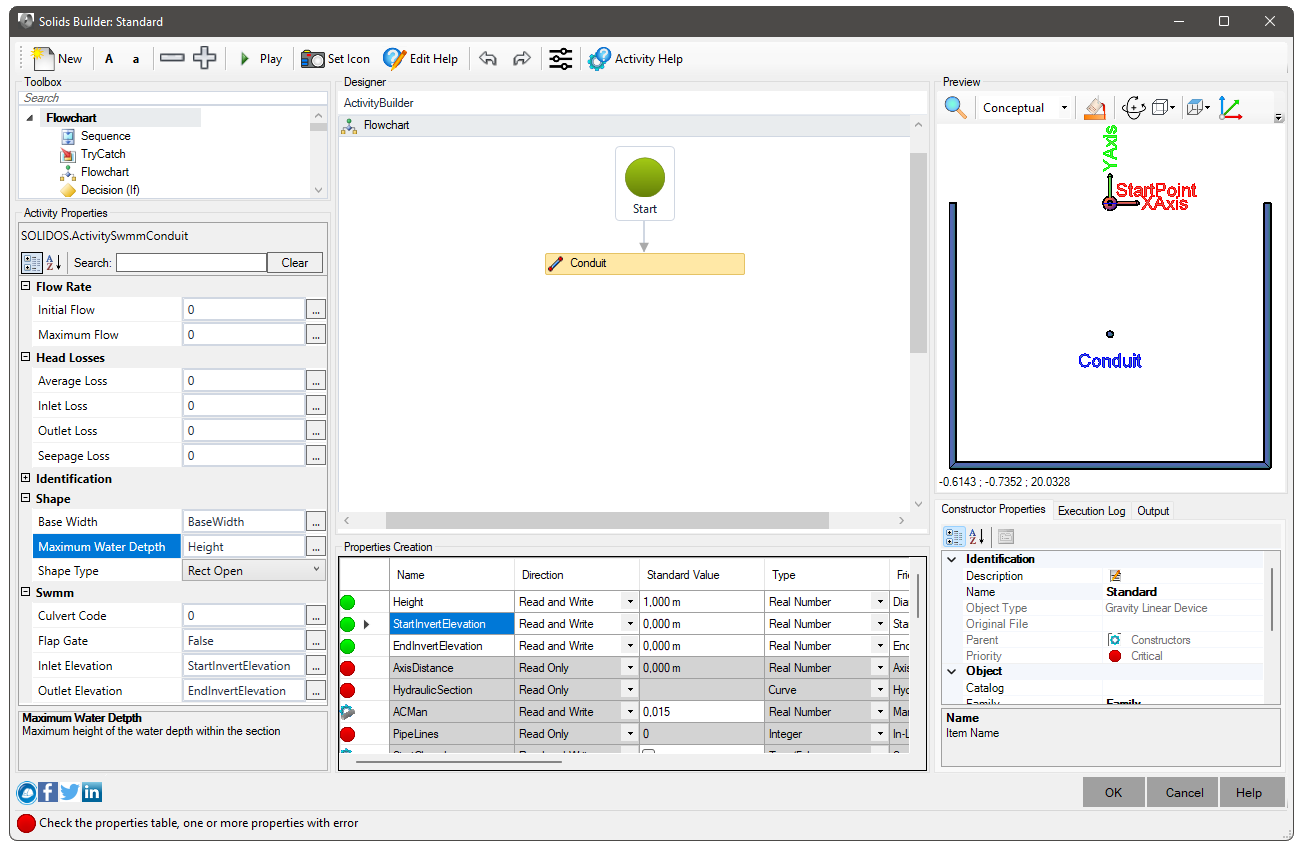

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the inner tube section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
