SWMM Shapes - Power

THE Power Section of SWMM, implements open section channels, described by the function:

• MaxSecDepth - Section Height
• TopWidth - Width of the Top
• Exponent - exponent of the function

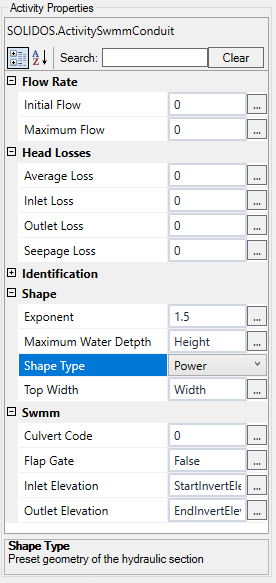

The geometry properties relevant to this section are the Top Width, the Maximum Height and the Exponent:

• Cross section
  • Maximum Height - Section Height
  • Maximum Width - Top Width
  • Exponent

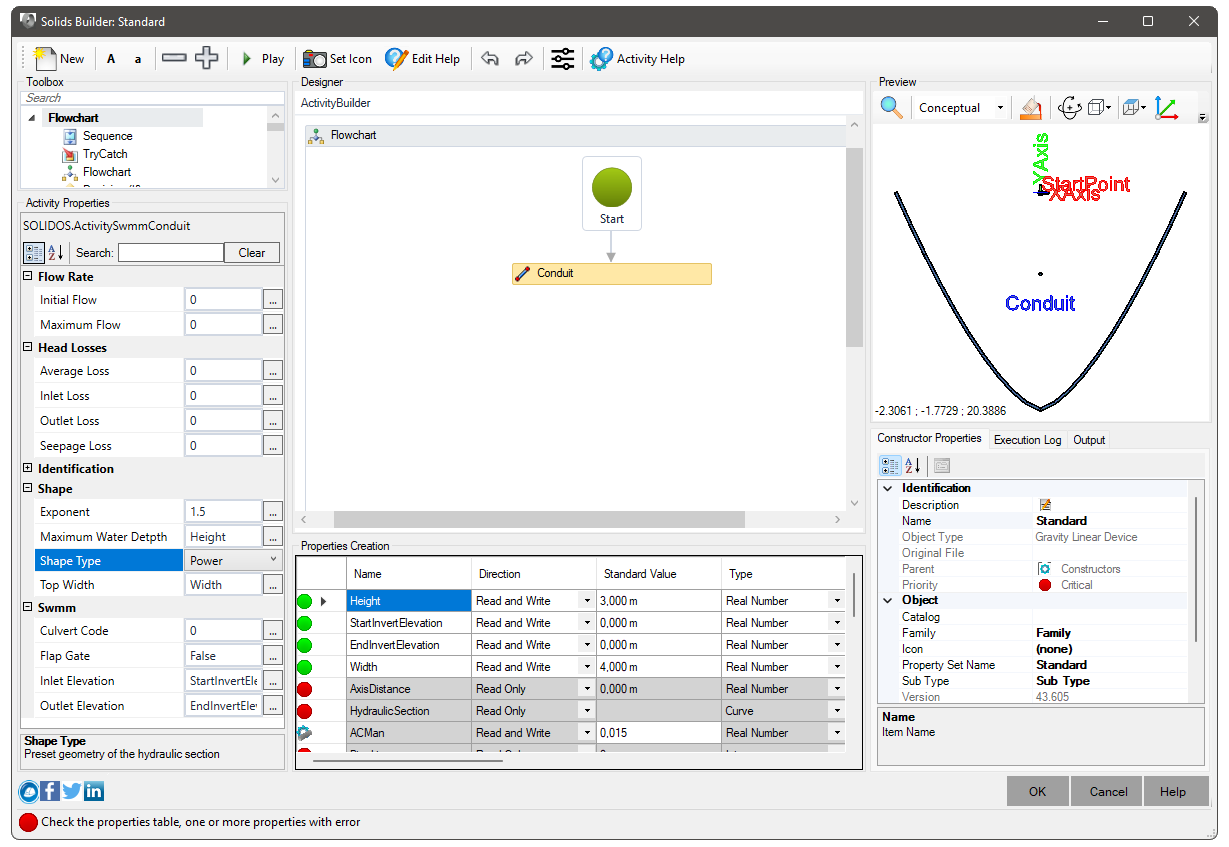

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the inner tube section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
