SWMM Shapes - Modified Basket Handle

THE Modified Basket Handle Section of SWMM, implements rectangular channels with Round roof.

The geometry properties relevant to this section are Top Width and the Maximum Height and Top Radius:

• Cross section
  • Maximum Height - Section Height
  • Top Width - Section Width
  • Top Radius - radius of the top of the section

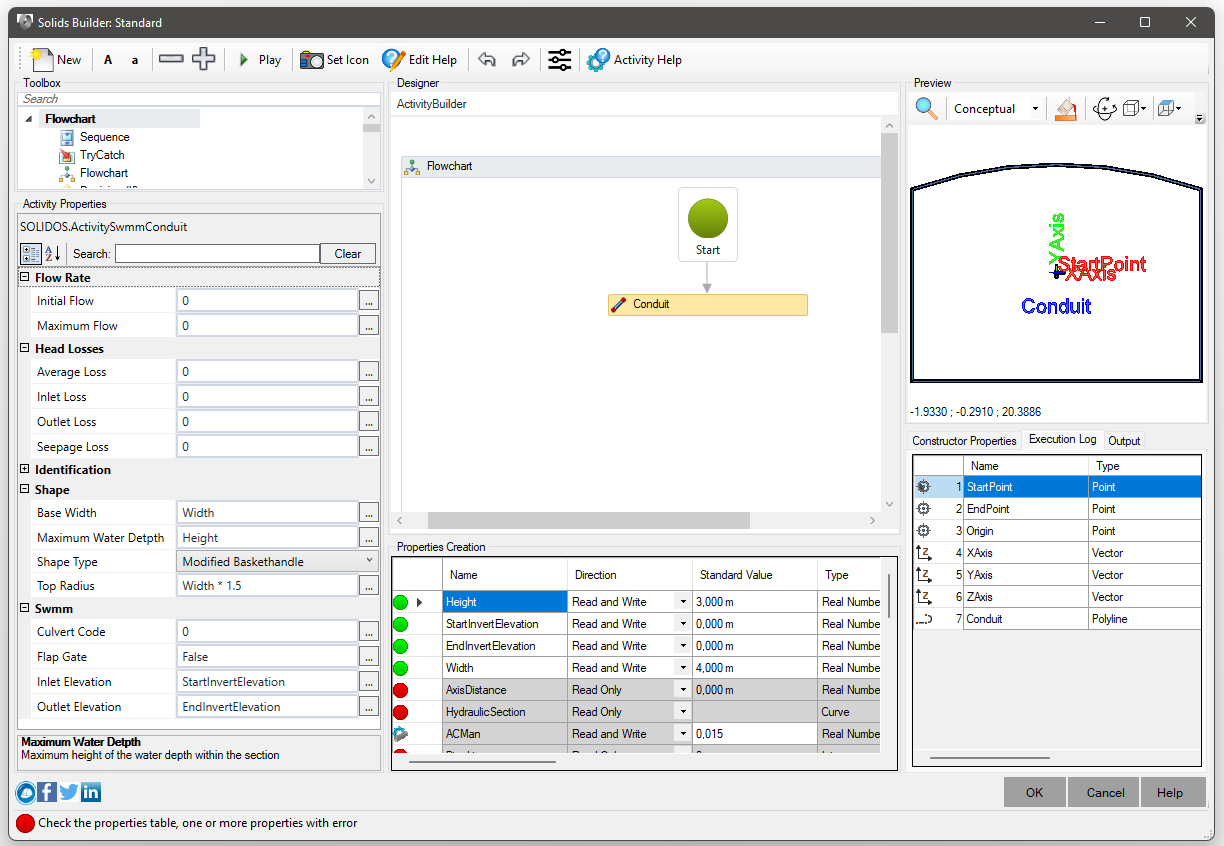

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the device's internal section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
