SWMM Shapes - Transect

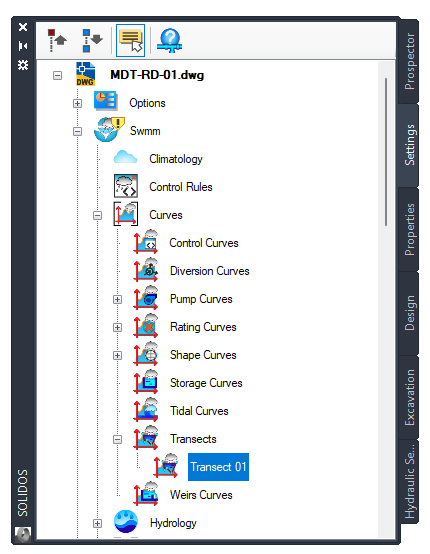

THE Transect of SWMM implements Transect galleries. Custom sections are saved in the Swmm / Curves / Transects node:

A section of this type must be given in terms of the ratios (Height/Total Height) and (Width/Total Height):

• Cross section
  • Section - Name of the Transect to use in modeling

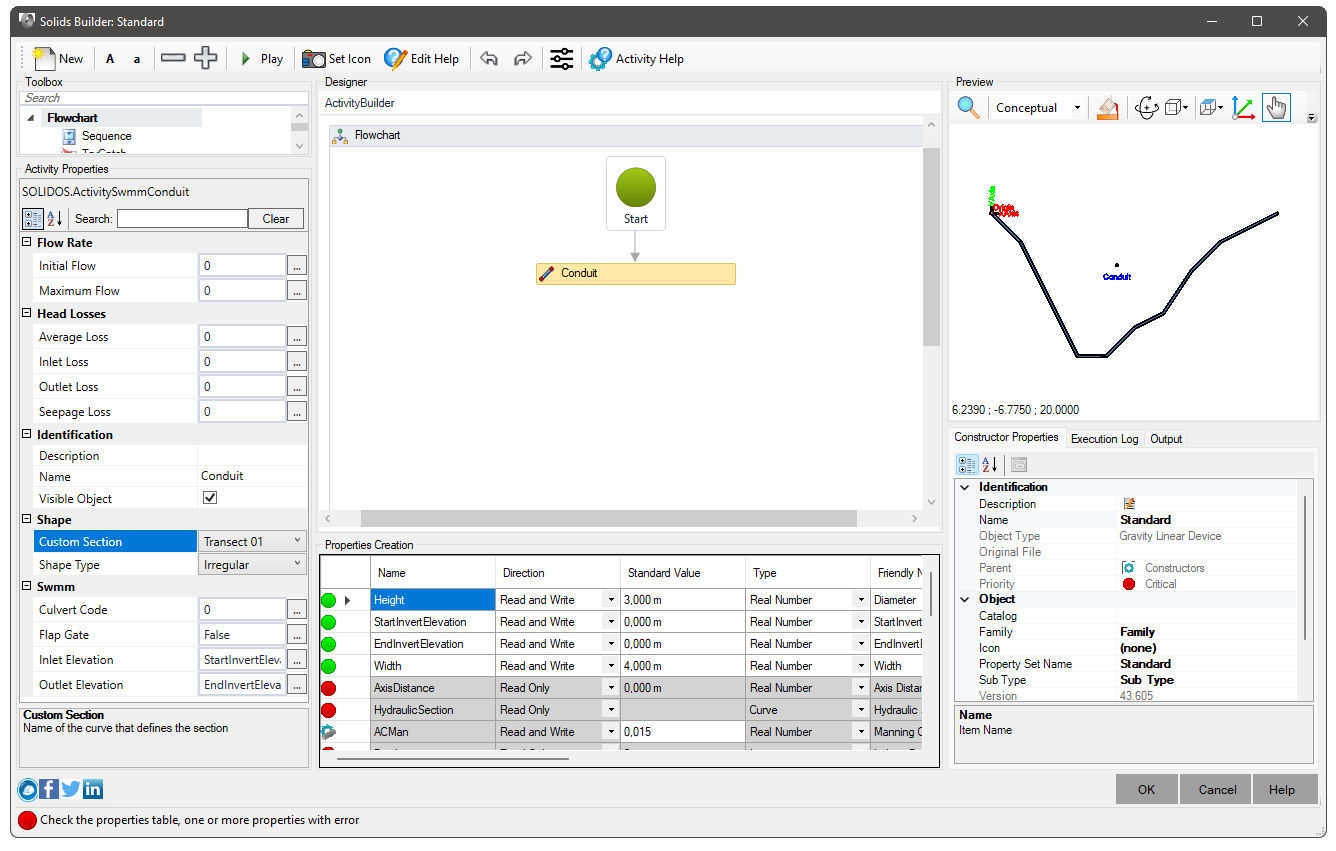

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the device's internal section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
