SWMM Shapes - Horseshoe

THE Horseshoe Section of SWMM, implements Horseshoe section galleries

The relevant geometry property for this section is the Maximum Height:

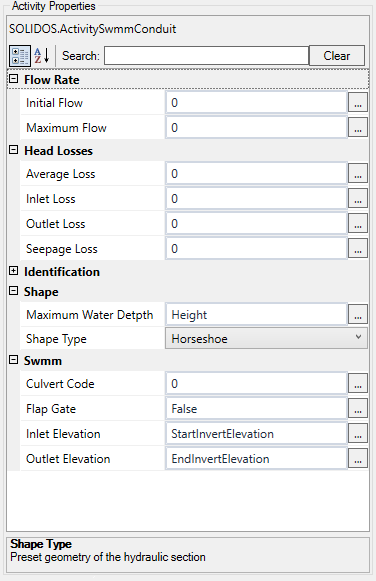

• Cross section
  • Maximum Height - Section Height

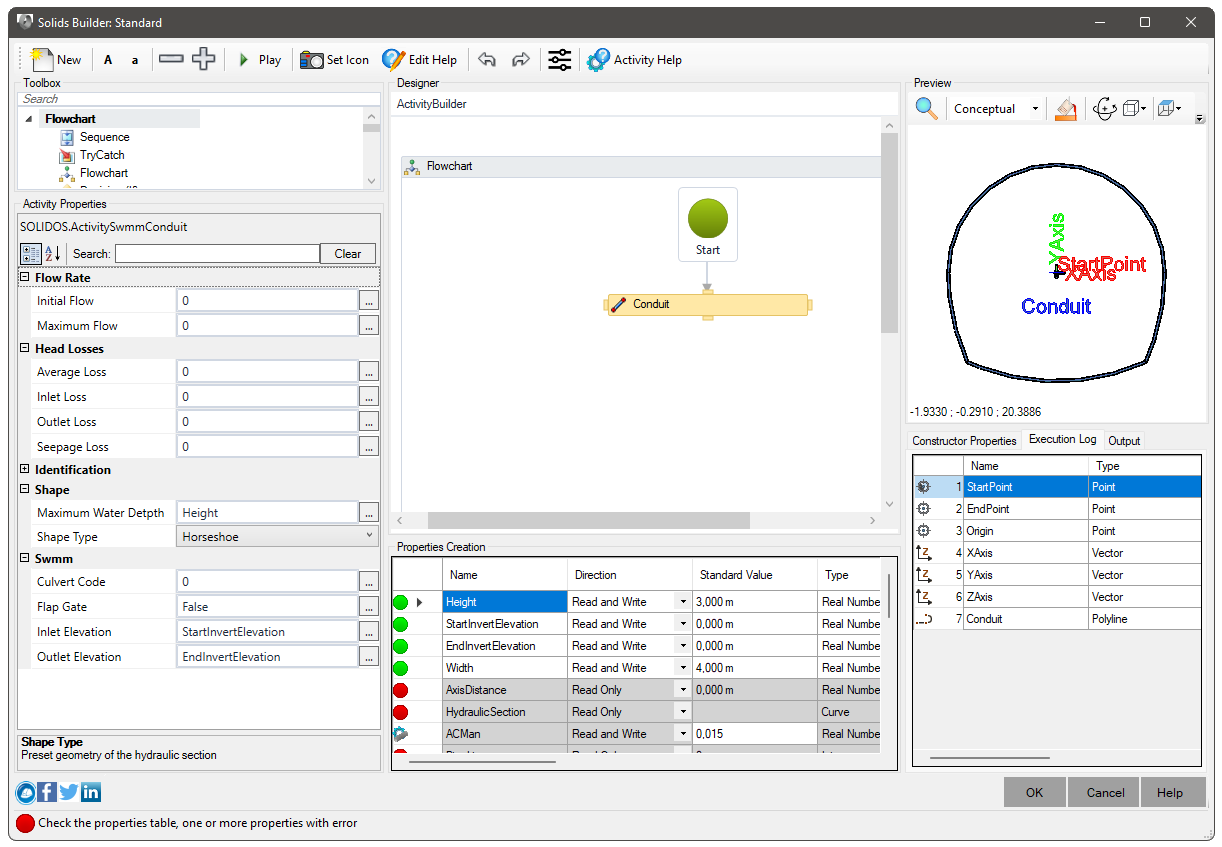

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the device's internal section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
