SWMM Shapes - Circular

THE Circular Section of SWMM, implements circular pipes.

The relevant geometry property for this section is the Diameter, which must be equal to the inside diameter of the tube:

• Cross section
  • Diameter - Maximum depth of the storage unit

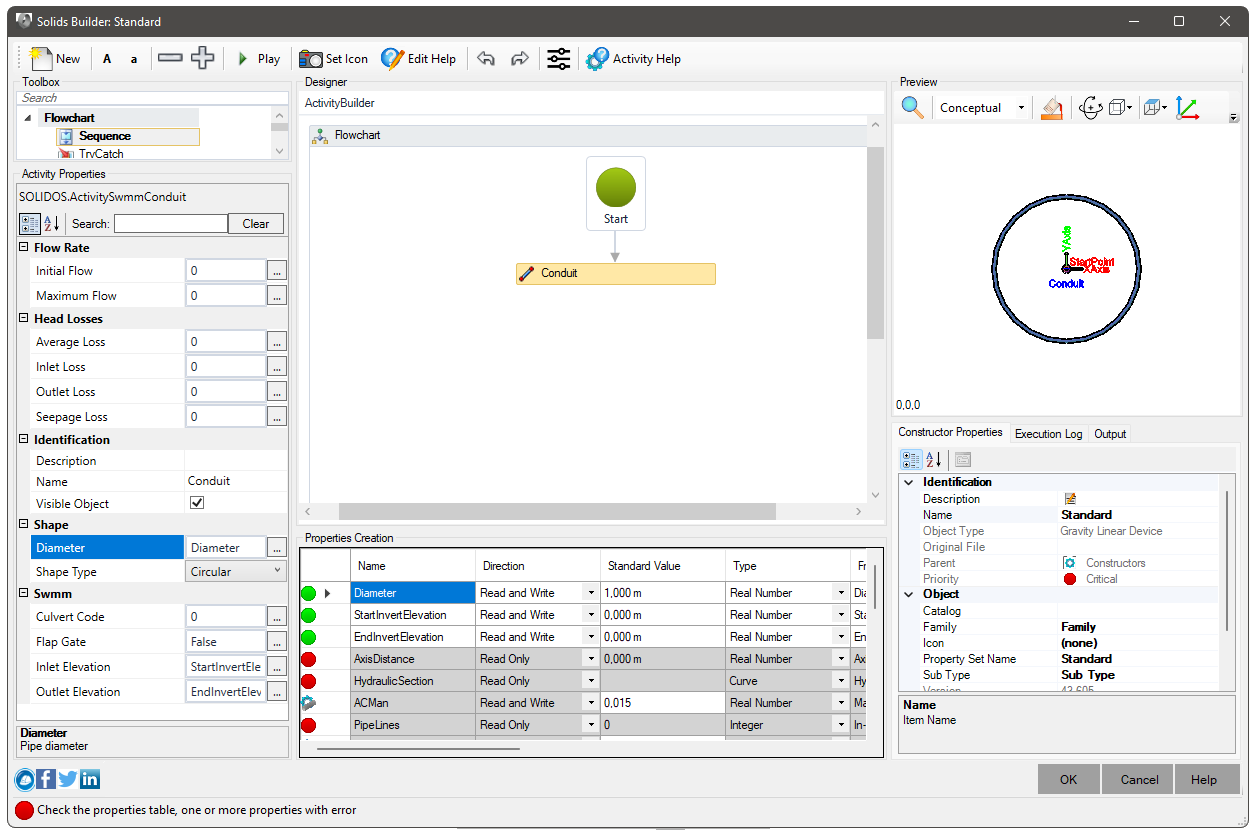

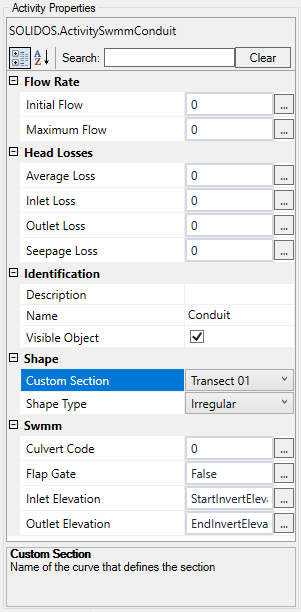

In SOLIDOS, the user must implement properties in the device constructor that describes that section, for example:

Note: You can use the section generated by this activity to model the inner tube section and also to define the Hydraulic Section of the linear device, as this is a mandatory property for dimensioning.
