SWMM - Curves - Division Curves

Describes the variation of output flow rate values as a function of input flow rate in SWMM Flow Dividers

It is assigned to a SWMM Divider when the Constructor (point gravity) of device associates this to tool Divider

A Diversion Curve has the following properties:

• Identification
  • Description (Description, String) - Use a user-friendly description when the item name is not sufficient
  • Name (Name, String) - item name
    Avoid names that are too long or contain the following characters: '*', '>', '<', '/', '\', '"', ':', ';', '|', '=', '`', '#', ',', '?'
• Object
  • Priority (Priority, Enum) - Information regarding the item's current status. Can be:
    • Neutral: no issues
    • Critical: A problem preventing the calculation or use of the item
  • Error Evaluation (CurveError, Enum) Result of the data evaluation
  • Curve Data (CurveData, IListClonavel) - the curve data, with the following columns:
    • Inflow (X, Double) - flow entering the device
    • Outflow (Y, Double) - flow exiting through the divider

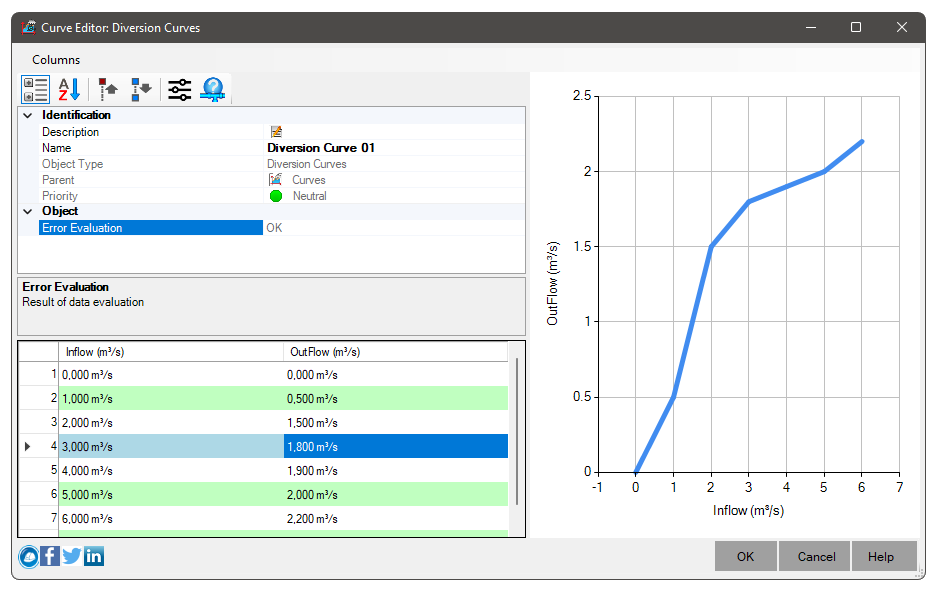

The data is populated in the table and plotted on the graph for better visualization:

The flows that enter must be in ascending order and not repeat and cannot be negative, otherwise the Priority property will be as Critical
