SWMMPLAY

The command SWMMPLAY shows a toolbar that allows you to change the period of data displayed by SWMM:

To use, call SWMMPLAY from the command line, menu, toolbar or Ribbon

Note: In order to be able to use the command, the SWMM needs to be computed and without errors. To calculate, use the command SWMMCALC

On this screen, you can:

• - Go to the beginning of the simulation
• - Return to the simulation, automatically incrementing the step (animation)
• - Return to the simulation, one step at a time
• xxx/yyyy - Simulation index indicator / number of simulations
• - Advance the simulation, one step at a time once
• - Advance the simulation, automatically incrementing the step (animation)
• - Go to the end of the simulation

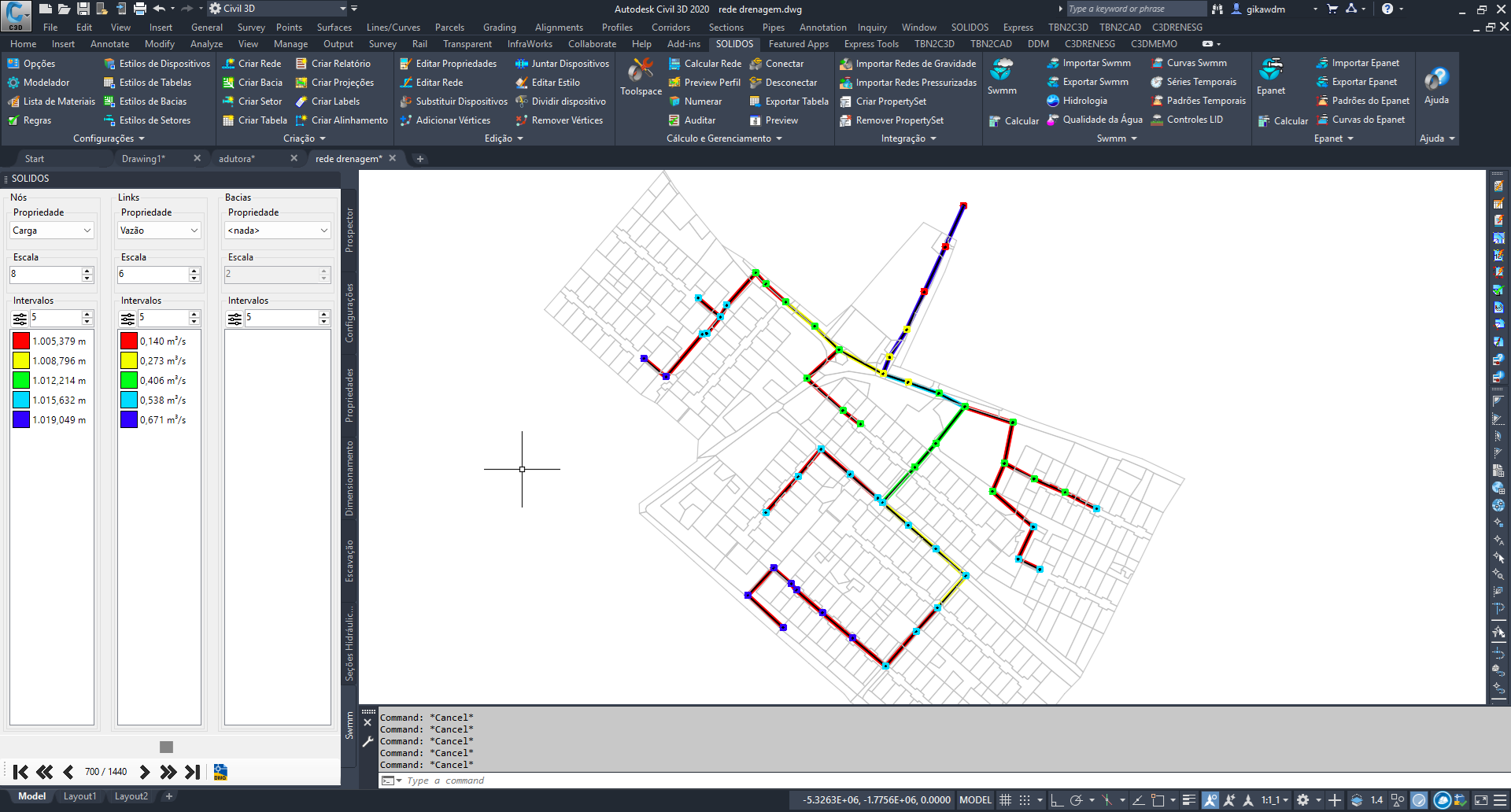

Note that you can define styles for nodes, links, and basins, varying the number of intervals and scale, as well as choose from the properties calculated by SOLIDOS. A possible result would be:
