SWMMTIMESERIES

The command SWMMTIMESERIES creates and edits SWMM Time Series

To use, call SWMMTIMESERIES from the command line, menu, toolbar or Ribbon and choose the style you want to edit:

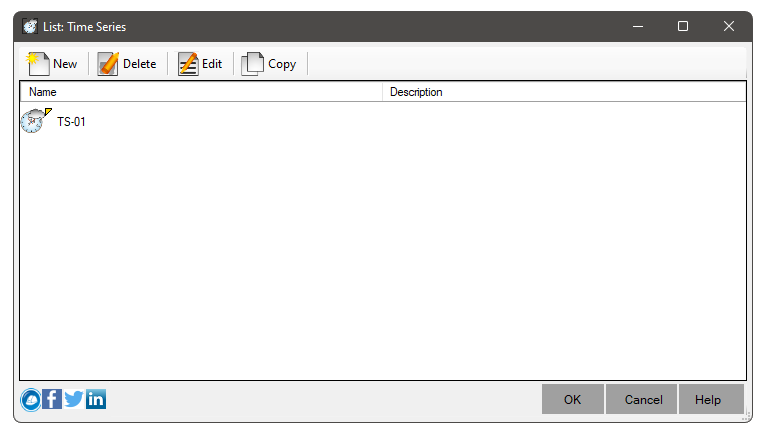

On this screen you can:

• New - Create a new time series
• Delete - Delete selected time series if not in use
• Edit - Edit the selected time series
• Copy - Copy and edit the selected time series
• Pick - select on the screen an item that has the time series you want to edit

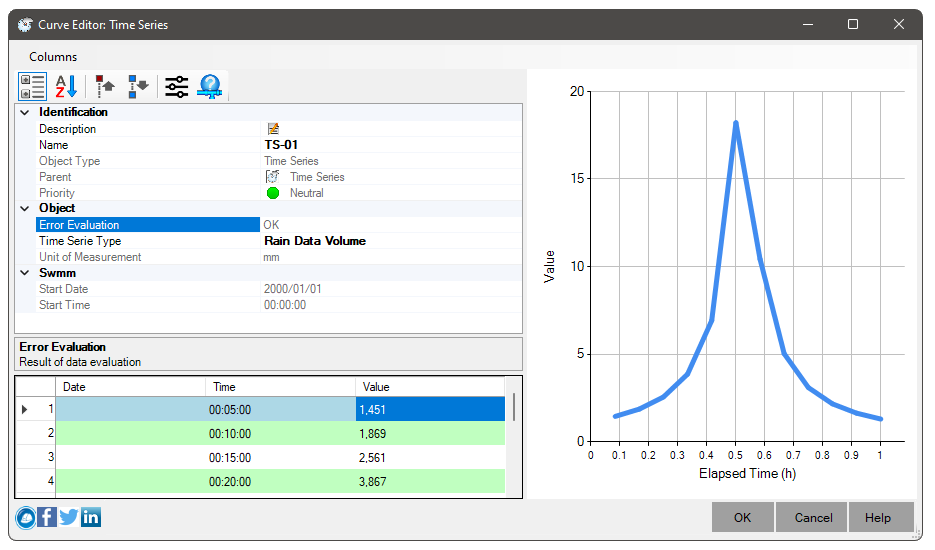

When clicking the button New, the following screen is shown:

1. Give a name to the time series in the properties frame on the left side at the top
   Note, SWMM is very sensitive with object naming. Do not use special characters. Spaces will be converted to "_" in the INP file generated by the command SWMMEXPORT and the name must be limited to 31 characters
2. In the table on the left, enter the values to create the series. Note that you can change the column order, but the graph will be the same.
3. If the data entered in the table generate invalid curves, the Priority property will appear with the icon

See also:

• SWMMPATTERNS - to edit Time Patterns

Note: To be able to Use this command, a license is required. Otherwise, you will only be able to view the pre-existing time series.
