SWMMPATTERNS

The command SWMMPATTERNS creates and edits SWMM Standards

To use, call SWMMPATTERNS from the command line, menu, toolbar or Ribbon and choose the style you want to edit:

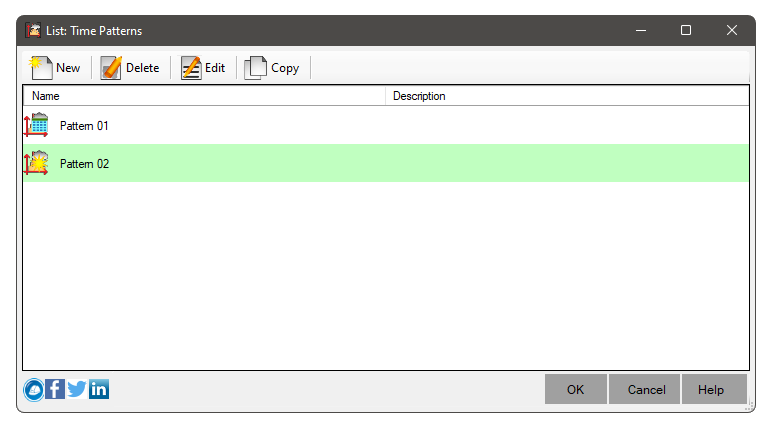

On this screen you can:

• New - Create a new time pattern
• Delete - Delete selected patterns if not in use
• Edit - Edit the selected Time Pattern
• Copy - Copy and edit the selected Time Pattern
• Pick - select on the screen an item that has the time pattern you want to edit

When clicking the button New, you will be asked to choose the type of Time Pattern:

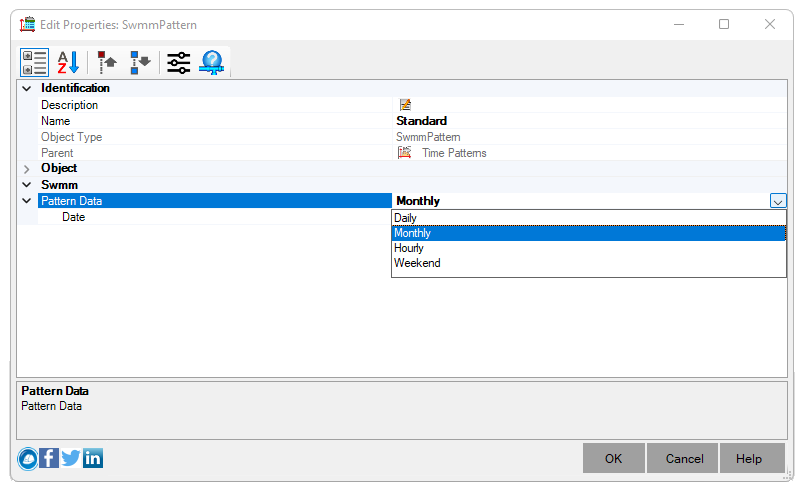

1. Time Patterns only vary within the period considered, so choose the period
2. Give the pattern a name
   Note, SWMM is very sensitive with object naming. Do not use special characters. Spaces will be converted to "_" in the INP file generated by the command SWMMEXPORT and the name must be limited to 31 characters

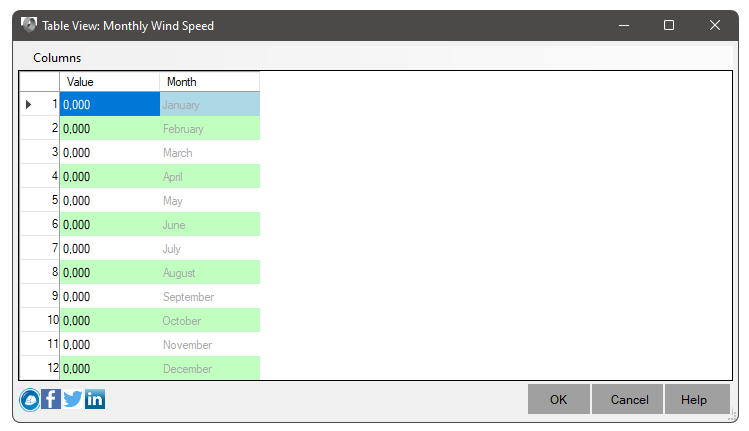

3. On the line below the period, click the icon to edit the pattern values:


4. If the informed values are invalid, the Priority property will appear with the icon

See also:

• SWMMCURVES - to edit SWMM curves

Note: To be able to Use this command, a license is required. Otherwise, you will only be able to view the pre-existing patterns.
