SWMMLIDCONTROLS

The command SWMMLIDCONTROLS creates and edits low-impact controls, or SWMM LID controls

To use, call SWMMLIDCONTROLS from the command line, menu, toolbar, or Ribbon

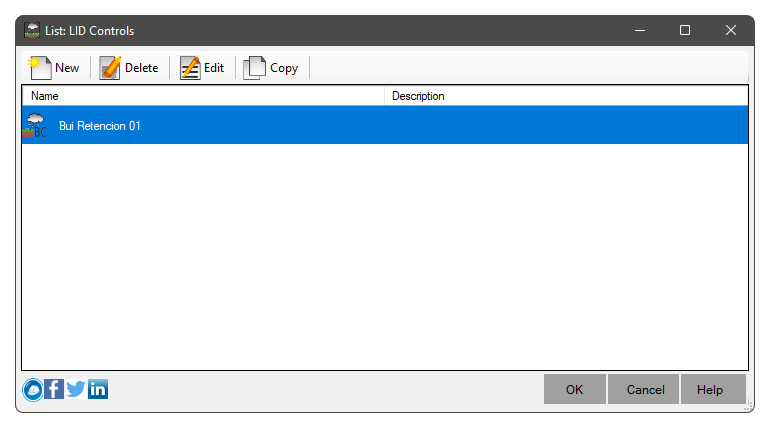

On this screen you can:

• New - Create a new item
• Delete - Delete selected items if not in use
• Edit - Edit the selected item
• Copy - Copy and edit the selected item
• Pick - select an item on the screen that uses the item you want to edit

When clicking the button New, you will be asked to choose the type of item to create:

There are 8 types of LID controls:

1. Bio-Retention Cell - or bio-retention cells, are depressions that contain vegetation grown in an engineered soil mix placed above a gravel drainage bed
2. Garden - are a type of bio-retention cell consisting only of the projected soil layer with no gravel bed below it
3. Green Roof - another variation of a bio-retention cell that has a layer of soil over a special drainage blanket material that carries excess rain percolated from the roof
4. Infiltration Trench - are narrow, gravel-filled ditches that intercept runoff from impermeable areas on slopes. They provide storage volume and additional time for captured runoff to infiltrate the native soil below.
5. Permeable Pavement - are excavated areas filled with gravel and paved with porous concrete or asphalt mix
6. Rain Barrel - are containers that collect runoff from the roof during storm events and can release or reuse rainwater during periods of drought
7. Rooftop Disconnection - when the gutter discharges into landscaped areas and permeable lawns rather than directly into culverts.

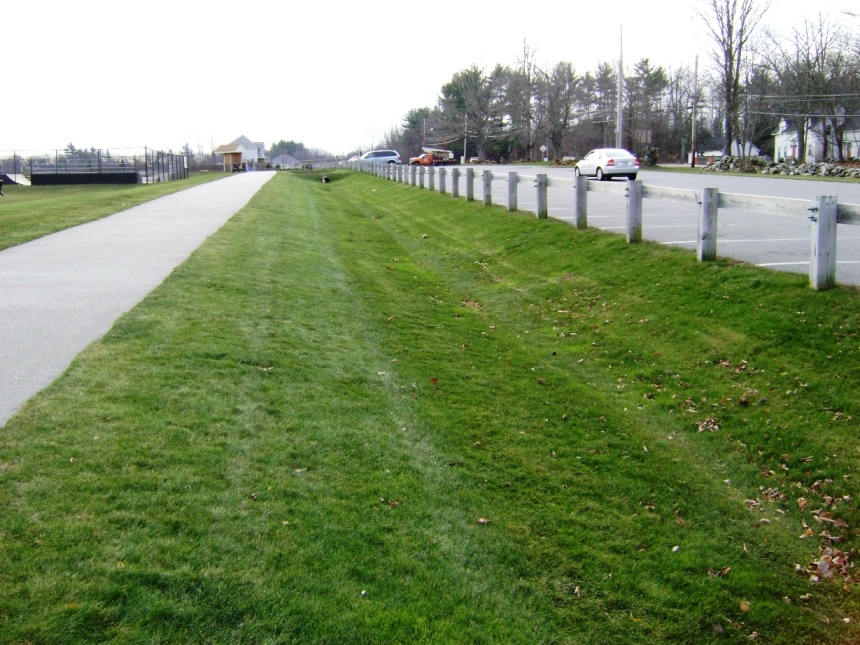

8. Ditch with Vegetation Coating - are channels or depressed areas with sloping sides covered with grass and other vegetation

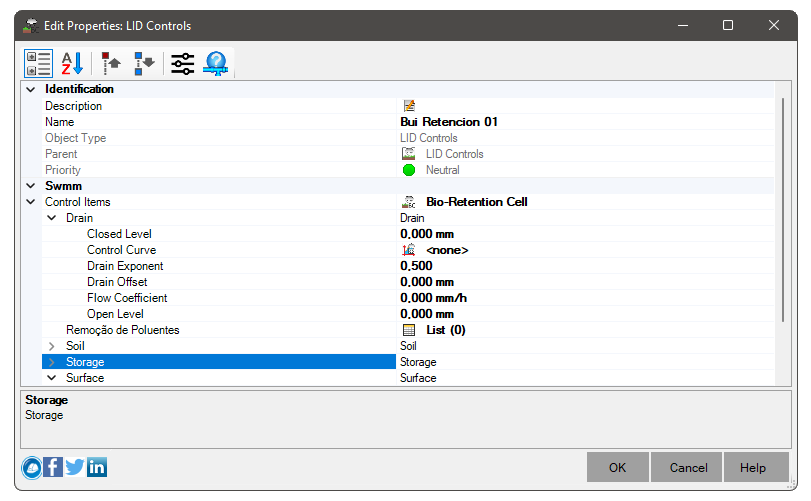

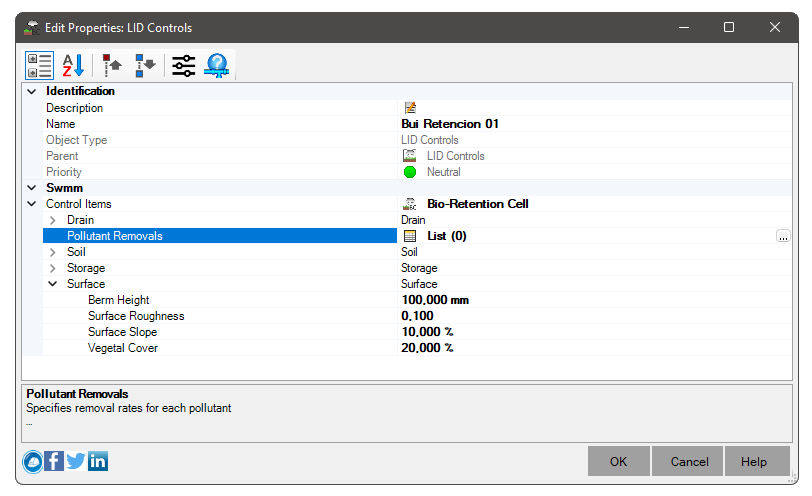

The various types of LID controls have layers. Expand categories to edit:

Check the specific help for each layer, for better understanding

Note: To be able to Use this command, a license is required. Otherwise, you will only be able to view the pre-existing data.
