SOLIDOS Modeler - Vector (XYZ)

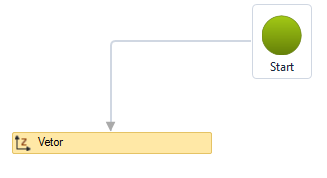

Vector (XYZ) - creates a vector, given the lengths in X, Y, Z:

Vectors are auxiliary tools for drawing various types of objects. For example, to draw a Circle, é The coordinates of the center, the radius, and also the vector normal to the plane in which the circle is drawn:

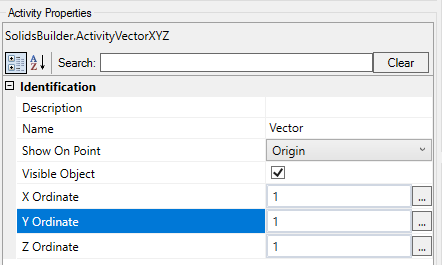

The activity Vector (XYZ) has the following properties:

• Identification
  • Name - name of the activity
    The point name must follow the naming rules
  • Ordened X - a VB expression for the X-coordinate
  • Y-coordinate - a VB expression for the Y-coordinate
  • Z-coordinate - a VB expression for the Z-coordinate
  • Show at Point - the name of the point where the vector will be shown in the preview (in the example of the circle above, the vector is shown at the point called center)
  • Visible Object - indicates whether the point should or should not be drawn in the preview

If the text becomes too large/small, or the sphere representing the point becomes too large or small, use the buttons (A, a, , ) at the top of the screen to change the preview

Properties (for use in VB expressions)

Implements the properties of vectors

Methods (for use in VB expressions)

Implements the methods of vectors
